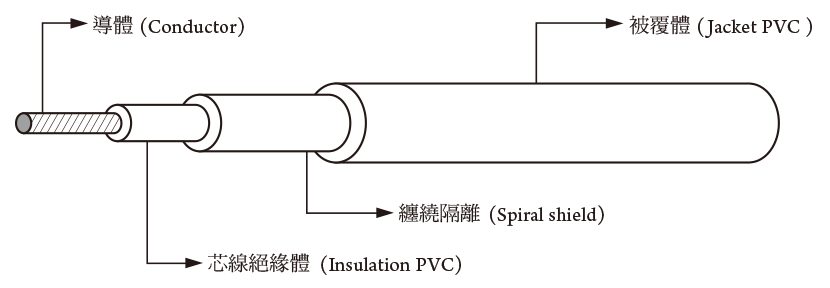

| 導體 Conductor |
芯線數 No.Of Core |
絕緣體 Insulation |
纏燒隔離 Spiral shied No./mm |
被覆厚度 Jacket Thickness mm |
完成外徑 Overall Diameter mm |
公差值 Tolerance mm |
|||
| 線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
外徑 O.D. mm |
公差值 Tolerance mm |
|||||
| 30 | 7/0.100 | 1 | 0.38 | 1.10 | ± 0.10 | 33/0.100 | 0.4 | 2.10 | ±0.10 |
| 28 | 7/0.127 | 1 | 0.38 | 1.20 | ± 0.10 | 39/0.100 | 0.4 | 2.20 | ±0.15 |
| 26 | 7/0.160 | 1 | 0.38 | 1.30 | ± 0.10 | 41/0.100 | 0.4 | 2.30 | ±0.15 |
| 24 | 7/0.200 | 1 | 0.38 | 1.45 | ± 0.10 | 43/0.100 | 0.4 | 2.45 | ±0.15 |
| 24 | 11/0.160 | 1 | 0.38 | 1.45 | ± 0.10 | 43/0.100 | 0.4 | 2.45 | ±0.15 |
| 22 | 17/0.160 | 1 | 0.38 | 1.60 | ± 0.10 | 39/0.120 | 0.4 | 2.65 | ±0.15 |
| 22 | 7/0.254 | 1 | 0.38 | 1.60 | ± 0.10 | 39/0.120 | 0.4 | 2.65 | ±0.15 |
| 20 | 21/0.180 | 1 | 0.38 | 1.80 | ± 0.10 | 44/0.120 | 0.4 | 3.00 | ±0.15 |
| 20 | 65/0.100 | 1 | 0.38 | 1.80 | ± 0.10 | 45/0.120 | 0.4 | 3.10 | ±0.15 |
| 18 | 34/0.180 | 1 | 0.38 | 2.05 | ± 0.10 | 47/0.120 | 0.4 | 3.15 | ±0.15 |
| 18 | 72/0.120 | 1 | 0.38 | 2.15 | ± 0.10 | 65/0.100 | 0.4 | 3.50 | ±0.15 |
| 16 | 26/0.254 | 1 | 0.38 | 2.35 | ± 0.10 | 51/0.120 | 0.4 | 3.40 | ±0.15 |
