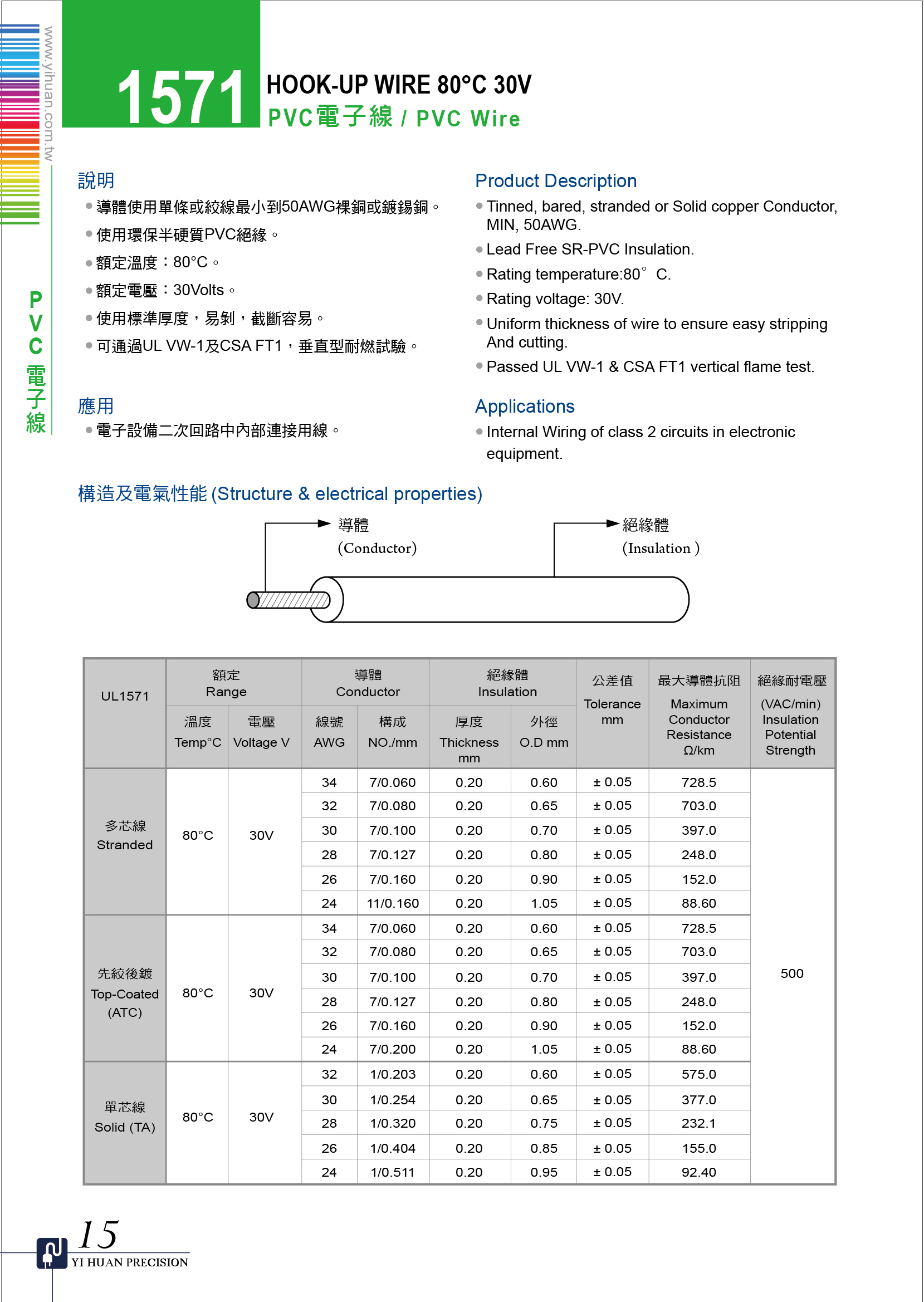

| UL 1571 | 額 定 Range |

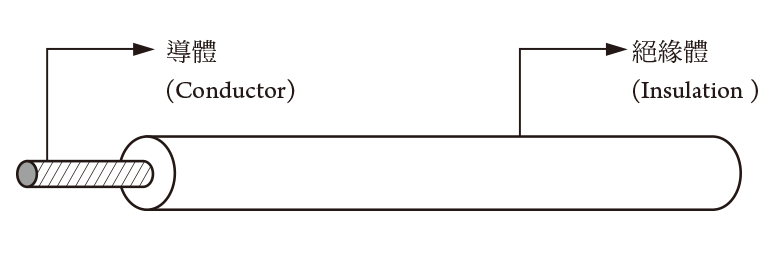

導體 Conductor |
絕緣體 Insulation |
公差值 Tolerance mm |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
|||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
外徑 O.D mm |
||||
| 多芯線 Stranded |
80℃ | 30V | 34 | 7/0.060 | 0.20 | 0.60 | ±0.05 | 728.5 | 500 |
| 32 | 7/0.080 | 0.20 | 0.65 | ±0.05 | 703.0 | ||||
| 30 | 7/0.100 | 0.20 | 0.70 | ±0.05 | 397.0 | ||||
| 28 | 7/0.127 | 0.20 | 0.80 | ±0.05 | 248.0 | ||||
| 26 | 7/0.160 | 0.20 | 0.90 | ±0.05 | 152.0 | ||||
| 24 | 11/0.160 | 0.20 | 1.05 | ±0.05 | 88.60 | ||||
| 先絞後鍍 Top-Coated (ATC) |
80℃ | 30V | 34 | 7/0.060 | 0.20 | 0.60 | ±0.05 | 728.5 | |
| 32 | 7/0.080 | 0.20 | 0.65 | ±0.05 | 703.0 | ||||
| 30 | 7/0.100 | 0.20 | 0.70 | ±0.05 | 397.0 | ||||
| 28 | 7/0.127 | 0.20 | 0.80 | ±0.05 | 248.0 | ||||
| 26 | 7/0.160 | 0.20 | 0.90 | ±0.05 | 152.0 | ||||
| 24 | 7/0.200 | 0.20 | 1.05 | ±0.05 | 88.60 | ||||
| 單芯線 Solid (TA) |
80℃ | 30V | 32 | 1/0.203 | 0.20 | 0.60 | ±0.05 | 575.0 | |
| 30 | 1/0.254 | 0.20 | 0.65 | ±0.05 | 377.0 | ||||
| 28 | 1/0.320 | 0.20 | 0.75 | ±0.05 | 232.1 | ||||
| 26 | 1/0.404 | 0.20 | 0.85 | ±0.05 | 155.0 | ||||
| 24 | 1/0.511 | 0.20 | 0.95 | ±0.05 | 92.40 | ||||
