Japanese Cord Set & Power Supply Cords-JIS C 3306-Flexible Cord

❖Product Description：

❈Type VFF ‧Bare stranded copper conductor. ‧PVC insulation flat twin cord. ‧Rated Voltage：300 Volts ‧Rated Temperature： VFF,VCTF,VCTFK:60°C HVFF,HVCTF,HVCTFK:75°C

❈Type VCTF ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, round type. ‧Rated Voltage：300 Volts ‧Rated Temperature： VFF,VCTF,VCTFK:60°C HVFF,HVCTF,HVCTFK:75°C

❈Type VCTFK ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧PVC jacketed cord, flat type. ‧Rated Voltage：300 Volts ‧Rated Temperature： VFF,VCTF,VCTFK:60°C HVFF,HVCTF,HVCTFK:75°C

❖Applications：
‧Suitable for indoor small electrical instruments.

❖Construction：

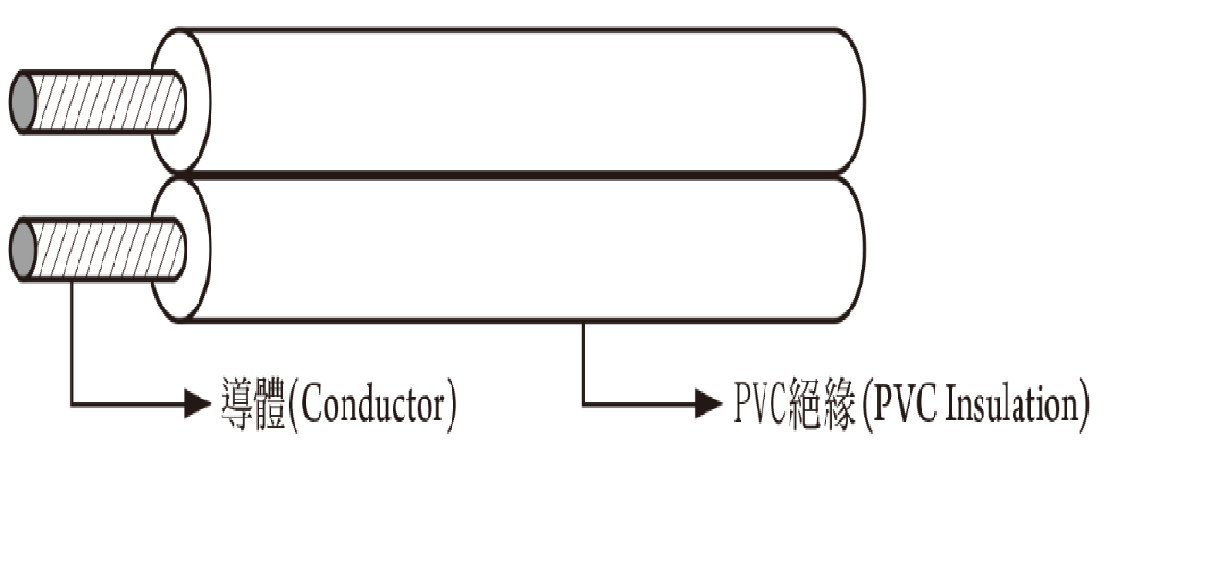

▼ Type VFF/HVFF
​



▼ Type VCTF/HVFF



▼ Type VCTFK/HVCTFK

Type No.	Conductor		Insulation Thickness	Jacket Thickness	Overall Diameter	Max. Cond. Resistance
	Size	線數/線徑
	mm²	No./ mm	mm	mm	mm	Ohm/km
VFF HVFF	0.75 x 2C	20 / 0.18	0.8	-	2.5 x 5.0	36.7
	1.25 x 2C	30 / 0.18		-	2.7 x 5.4	24.4
	2.00 x 2C	50 / 0.18		-	3.1 x 6.2	14.7
	2.00 x 2C	37 / 0.26		-	3.4 x 6.8	9.5
VCTF HVCTF	0.75 x 2C	30 / 0.18	0.6	1.0	6.6 ± 0.15	25.1
	1.25 x 2C	50 / 0.18			7.4 ± 0.20	15.1
	2.00 x 2C	37 / 0.26			8.0 ± 0.20	9.79
	0.75 x 3C	30 / 0.18			7.0 ± 0.20	25.1
	1.25 x 3C	50 / 0.18			7.8 ± 0.20	15.1
	2.00 x 3C	37 / 0.26			8.5 ± 0.20	9.79
	0.75 x 4C	30 / 0.18			7.6 ± 0.20	25.1
	1.25 x 4C	50 / 0.18			8.5 ± 0.20	15.1
	2.00 x 4C	37 / 0.26			9.3 ± 0.25	9.79
VCTFK HVCTFK	0.75 x 2C	30 / 0.18	0.6	1.0	4.3 x 6.6	24.4
	1.25 x 2C	50 / 0.18			4.7 x 7.4	14.7
	2.00 x 2C	37 / 0.26			5.0 x 8.0	9.5
