Japanese Cord Set & Power Supply Cords-JIS C3312-Portable Power Cord  / Precision power supply cords

Japanese Cord Set & Power Supply Cords-JIS C3312-Portable Power Cord ​

❖Product Description：

❈Type VCT ‧Tinned or bare, stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, round type. ‧Rated Voltage：VCT 60°C ‧Rated Temperature：HVCT 75°C

❈Type HVCT ‧Tinned or bare, stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, round type. ‧Rated Voltage：VCT 60°C ‧Rated Temperature：HVCT 75°C

​
❖Applications：
‧Suitable for portable hand tools. washing machines. polishers. sanders. vi-brators. lights. therapeutic machines.
dish washers. medical equipment. and office machines.

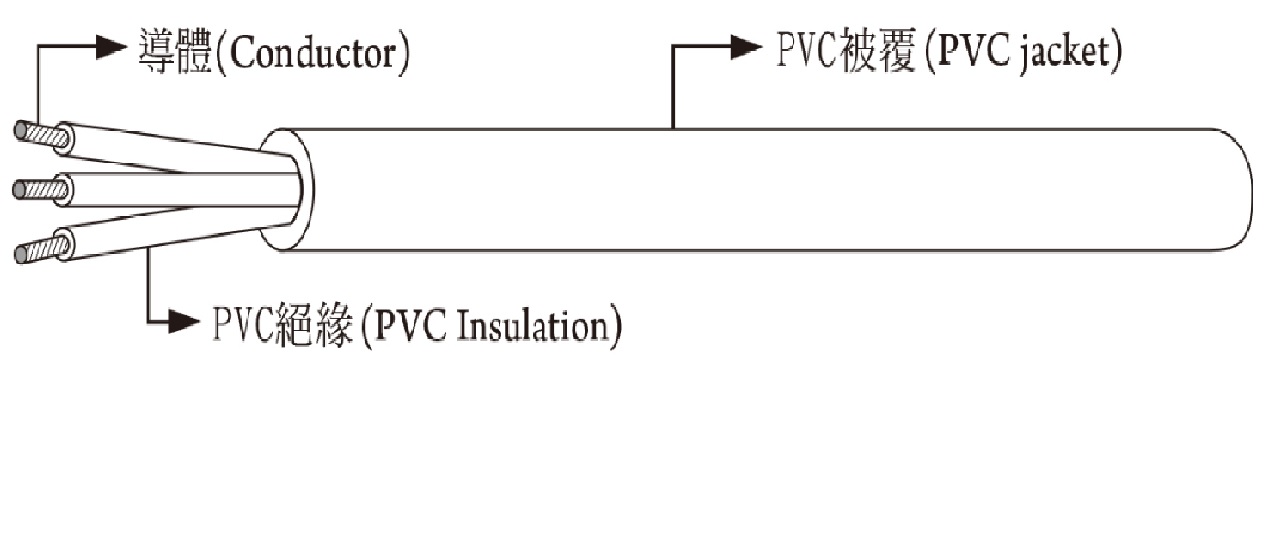

❖Construction：
▼ Type VCT/HVCT



Type No.	Conductor		Insulation Thickness	Jacket Thickness	Overall Diameter	Max. Cond. Resistance		Min Insu. Resistance
	Size	線數/線徑
	mm²	No./ mm	mm	mm	mm	Bare Copper	Tinned Copper	Ohm/km
VCT HVCT	0.75 x 2C	30 / 0.18	0.8	1.7	8.8	25.1	26.6	50
	1.25 x 2C	50 / 0.18		1.7	9.6	15.1	16.0	50
	2.00 x 2C	37 / 0.26		1.8	10.5	9.79	10.2	50
	0.75 x 3C	30 / 0.18		1.7	9.2	25.1	26.6	50
	1.25 x 3C	50 / 0.18		1.7	10.5	15.1	16.0	50
	2.00 x 3C	37 / 0.26		1.8	11.0	9.79	10.2	50
	0.75 x 4C	30 / 0.18		1.7	9.9	25.1	26.6	50
	1.25 x 4C	50 / 0.18		1.8	11.5	15.1	16.0	50
	2.00 x 4C	37 / 0.26		1.8	12.0	9.79	10.2	50
