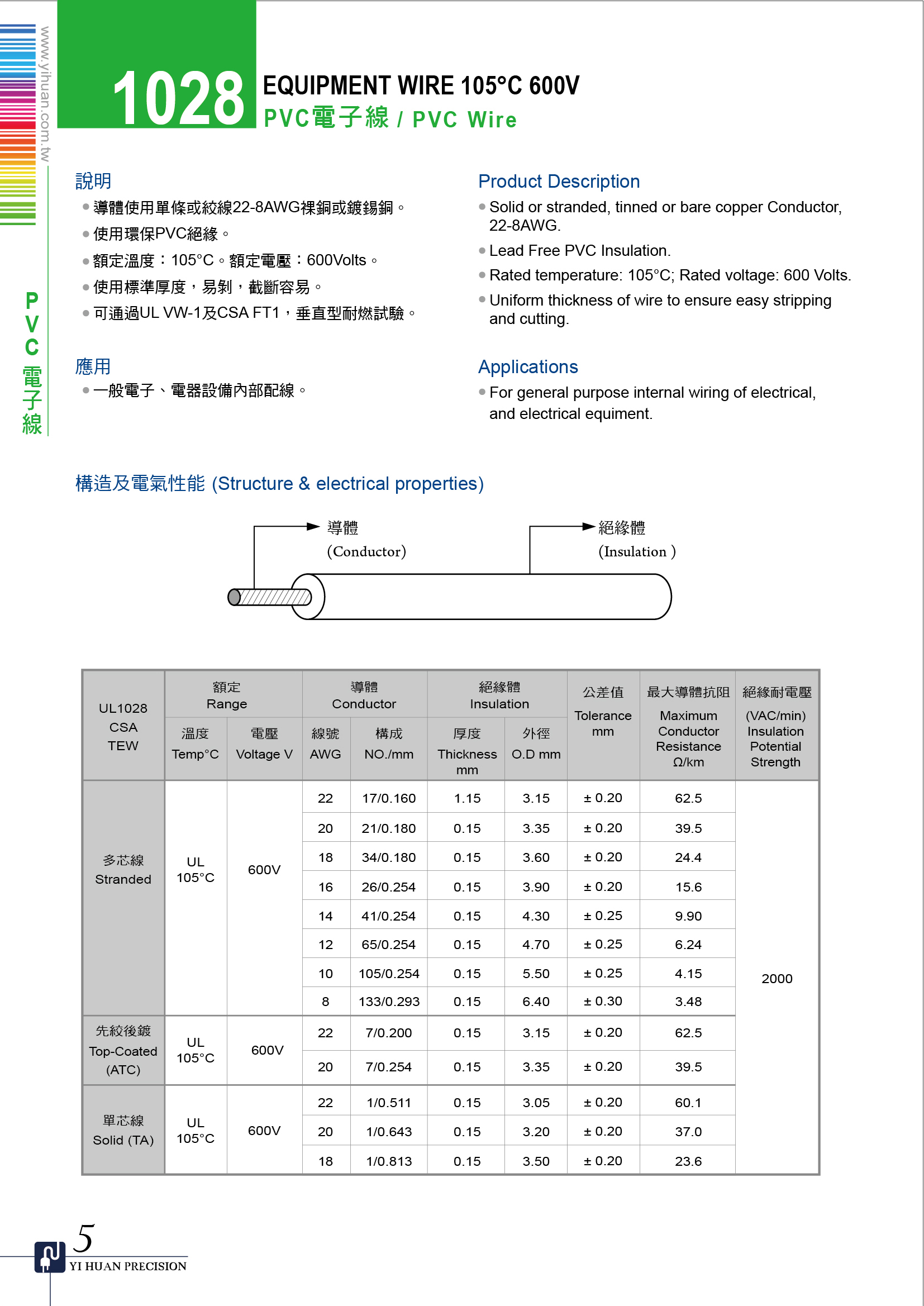

| UL 1028 | 額 定 Range |
導體 Conductor |
絕緣體 Insulation |
公差值 Tolerance mm |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
|||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
外徑 O.D mm |
||||
| 多芯線 Stranded |
105℃ | 600V | 22 | 17/0.160 | 1.15 | 3.15 | ± 0.20 | 62.5 | 2000 |
| 20 | 21/0.180 | 1.15 | 3.35 | ± 0.20 | 39.5 | ||||
| 18 | 34/0.180 | 1.15 | 3.60 | ± 0.20 | 24.4 | ||||
| 16 | 26/0.254 | 1.15 | 3.90 | ± 0.20 | 15.6 | ||||
| 14 | 41/0.254 | 1.15 | 4.30 | ± 0.25 | 9.90 | ||||
| 12 | 65/0.254 | 1.15 | 4.70 | ± 0.25 | 6.24 | ||||
| 10 | 105/0.254 | 1.15 | 5.50 | ± 0.25 | 4.15 | ||||
| 8 | 133/0.293 | 1.15 | 6.40 | ± 0.30 | 3.48 | ||||
| 先絞後鍍 Top-Coated (ATC) |
105℃ | 600V | 22 | 7/0.254 | 1.15 | 3.15 | ± 0.20 | 62.5 | |
| 20 | 7/0.320 | 1.15 | 3.35 | ± 0.20 | 39.5 | ||||
| 單芯線 Solid (TA) |
105℃ | 600V | 22 | 1/0.643 | 1.15 | 3.05 | ± 0.20 | 60.1 | |
| 20 | 1/0.813 | 1.15 | 3.20 | ± 0.20 | 37.0 | ||||
| 18 | 1/1.020 | 1.15 | 3.50 | ± 0.20 | 23.6 | ||||
