| UL Style & CSA Type |
額定 Range |
導體 Conductor |
芯線數 Core |
絕緣體 Insulation |
外被 Jacket |
完成外經 Overall Diameter |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
厚度 Jacket Thickness |
|||||

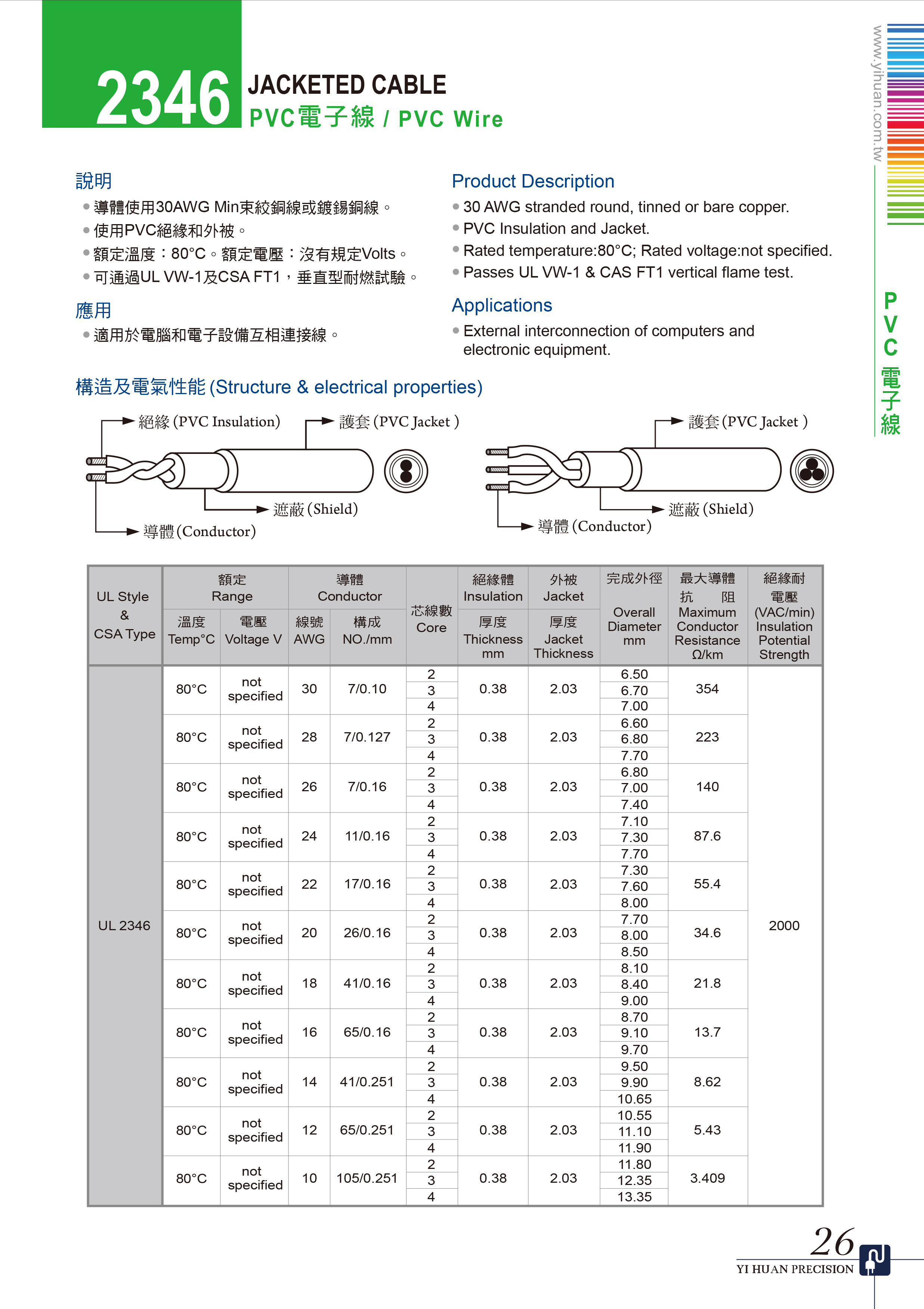

| UL 2346 | 80℃ | not specified | 30 | 7/0.10 | 2 | 0.38 | 2.03 | 6.50 | 354 | 2000 |
| 3 | 6.70 | |||||||||
| 4 | 7.00 | |||||||||
| 80℃ | not specified | 28 | 7/0.127 | 2 | 0.38 | 2.03 | 6.60 | 223 | ||
| 3 | 6.80 | |||||||||
| 4 | 7.70 | |||||||||
| 80℃ | not specified | 26 | 7/0.16 | 2 | 0.38 | 2.03 | 6.80 | 140 | ||
| 3 | 7.00 | |||||||||
| 4 | 7.40 | |||||||||
| 80℃ | not specified | 24 | 11/0.16 | 2 | 0.38 | 2.03 | 7.10 | 87.6 | ||
| 3 | 7.30 | |||||||||
| 4 | 7.70 | |||||||||
| 80℃ | not specified | 22 | 17/0.16 | 2 | 0.38 | 2.03 | 7.30 | 55.4 | ||
| 3 | 7.60 | |||||||||
| 4 | 8.00 | |||||||||
| 80℃ | not specified | 20 | 26/0.16 | 2 | 0.38 | 2.03 | 7.70 | 34.6 | ||
| 3 | 8.00 | |||||||||
| 4 | 8.50 | |||||||||
| 80℃ | not specified | 18 | 41/0.16 | 2 | 0.38 | 2.03 | 8.10 | 21.8 | ||
| 3 | 8.40 | |||||||||
| 4 | 9.00 | |||||||||
| 80℃ | not specified | 16 | 65/0.16 | 2 | 0.38 | 2.03 | 8.70 | 13.7 | ||
| 3 | 9.10 | |||||||||
| 4 | 9.70 | |||||||||
| 80℃ | not specified | 14 | 41/0.251 | 2 | 0.38 | 2.03 | 9.50 | 8.62 | ||
| 3 | 9.90 | |||||||||
| 4 | 10.65 | |||||||||
| 80℃ | not specified | 12 | 65/0.251 | 2 | 0.38 | 2.03 | 10.55 | 5.43 | ||
| 3 | 11.10 | |||||||||
| 4 | 11.90 | |||||||||
| 80℃ | not specified | 10 | 105/0.251 | 2 | 0.38 | 2.03 | 11.80 | 3.409 | ||
| 3 | 12.35 | |||||||||
| 4 | 13.35 | |||||||||
