| UL Style & CSA Type |
線號 AWG |
導體 Conductor |
芯線數 Core |
絕緣體 Insulation |
外被 Jacket |
完成外徑 Overall Diameter mm |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
厚度 Jacket Thickness |
|||||

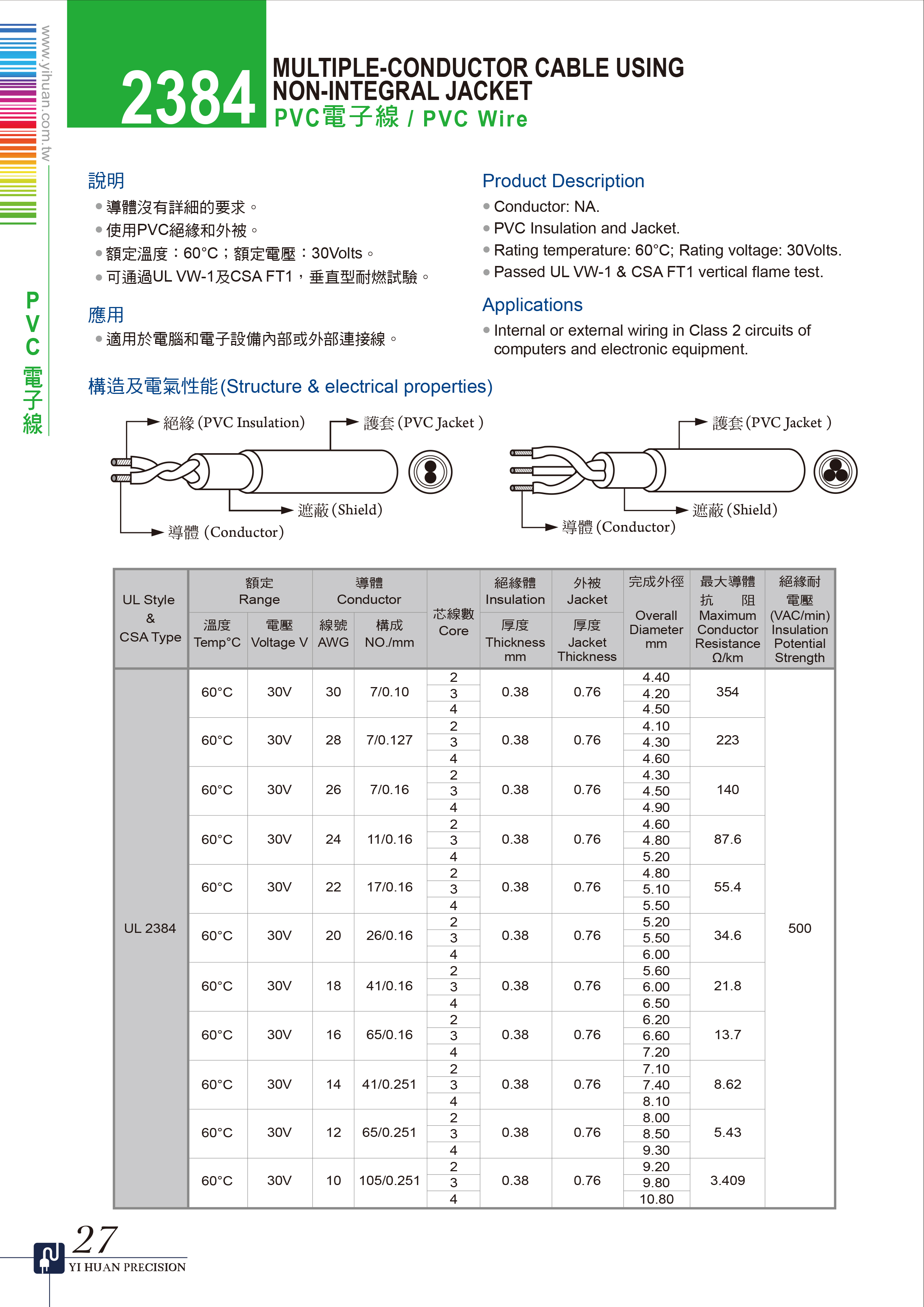

| UL 2384 | 60℃ | 30V | 30 | 7/0.10 | 2 | 0.38 | 0.76 | 4.00 | 354 | 500 |
| 3 | 4.20 | |||||||||
| 4 | 4.50 | |||||||||
| 60℃ | 30V | 28 | 7/0.127 | 2 | 0.38 | 0.76 | 4.10 | 223 | ||
| 3 | 4.30 | |||||||||
| 4 | 4.60 | |||||||||
| 60℃ | 30V | 26 | 7/0.16 | 2 | 0.38 | 0.76 | 4.30 | 140 | ||
| 3 | 4.50 | |||||||||
| 4 | 4.90 | |||||||||
| 60℃ | 30V | 24 | 11/0.16 | 2 | 0.38 | 0.76 | 4.60 | 87.6 | ||
| 3 | 4.80 | |||||||||
| 4 | 5.20 | |||||||||
| 60℃ | 30V | 22 | 17/0.16 | 2 | 0.38 | 0.76 | 4.80 | 55.4 | ||
| 3 | 5.10 | |||||||||
| 4 | 5.50 | |||||||||
| 60℃ | 30V | 20 | 26/0.16 | 2 | 0.38 | 0.76 | 5.20 | 34.6 | ||
| 3 | 5.50 | |||||||||
| 4 | 6.00 | |||||||||
| 60℃ | 30V | 18 | 41/0.16 | 2 | 0.38 | 0.76 | 5.60 | 21.8 | ||
| 3 | 6.00 | |||||||||
| 4 | 6.50 | |||||||||
| 60℃ | 30V | 16 | 65/0.16 | 2 | 0.38 | 0.76 | 6.20 | 13.7 | ||
| 3 | 6.60 | |||||||||
| 4 | 7.20 | |||||||||
| 60℃ | 30V | 14 | 41/0.251 | 2 | 0.38 | 0.76 | 7.10 | 8.62 | ||
| 3 | 7.40 | |||||||||
| 4 | 8.10 | |||||||||
| 60℃ | 30V | 12 | 65/0.251 | 2 | 0.38 | 0.76 | 8.00 | 5.43 | ||
| 3 | 8.50 | |||||||||
| 4 | 9.30 | |||||||||
| 60℃ | 30V | 10 | 105/0.251 | 2 | 0.38 | 0.76 | 9.20 | 3.409 | ||
| 3 | 9.80 | |||||||||
| 4 | 10.80 | |||||||||
