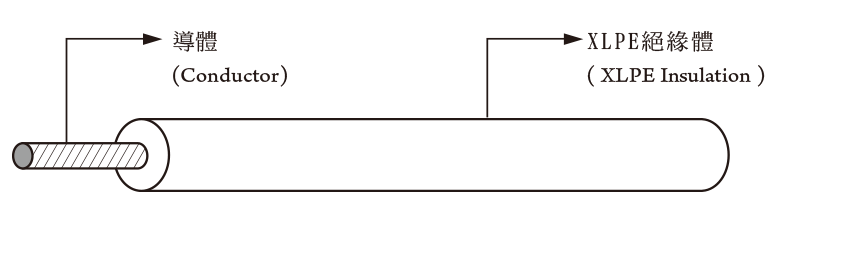

| UL3265 | 額 定 Range |
導體 Conductor |
絕緣體 Insulation |
公差值 Tolerance mm |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
|||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
外徑 O.D mm |
||||
| Stranded | 125°C | 150V | 32 | 7/0.080 | 0.25 | 0.80 | ± 0.10 | 703 | 2000 |
| 30 | 7/0.100 | 0.25 | 0.85 | ± 0.10 | 397 | ||||
| 28 | 7/0.127 | 0.25 | 0.95 | ± 0.10 | 248 | ||||
| 26 | 7/0.160 | 0.25 | 1.05 | ± 0.10 | 152 | ||||
| 24 | 11/0.160 | 0.25 | 1.20 | ± 0.10 | 88.6 | ||||
| 22 | 17/0.160 | 0.25 | 1.35 | ± 0.10 | 62.5 | ||||
| 20 | 21/0.180 | 0.25 | 1.55 | ± 0.10 | 39.5 | ||||
| 18 | 34/0.180 | 0.25 | 1.80 | ± 0.10 | 24.4 | ||||
| 16 | 26/0.254 | 0.25 | 2.10 | ± 0.15 | 15.6 | ||||
| Solid (TA) | 125°C | 150V | 30 | 1//0.254 | 0.25 | 0.80 | ± 0.10 | 377 | |
| 28 | 1/0.320 | 0.25 | 0.85 | ± 0.10 | 232 | ||||
| 26 | 1/0.040 | 0.25 | 0.95 | ± 0.10 | 155 | ||||
| 24 | 1/0.500 | 0.25 | 1.05 | ± 0.10 | 92.4 | ||||
| 22 | 1/0.643 | 0.25 | 1.20 | ± 0.10 | 60.1 | ||||
| 20 | 1/0.813 | 0.25 | 1.40 | ± 0.10 | 37.0 | ||||
