專業生產AC電源線組的績優外銷製造廠
Language：
∷
∷
∷

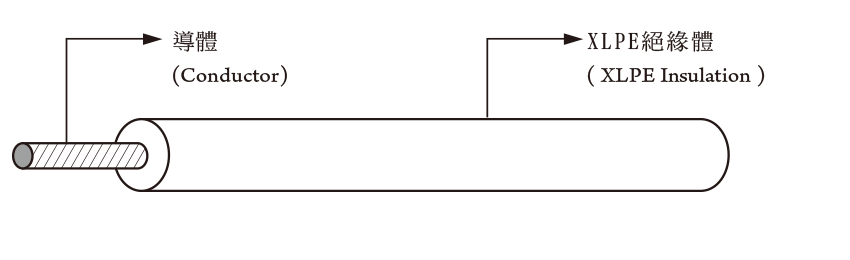

| 導體 Conductor |
絕緣體 Insulation |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
|||
| 線號 AWG |
構成 NO./mm |
線徑 Diameter mm |
材質 Material |
線徑 Diameter mm |
|
| 26 | 7/0.16 | 0.48 | XL-PE | 2.10 | 105 |
| 24 | 11/0.16 | 0.61 | 2.23 | 95 | |
| 22 | 17/0.16 | 0.76 | 2.38 | 61.2 | |
| 20 | 21/0.18 | 0.95 | 2.57 | 35.3 | |
| 18 | 16/0.254 | 1.18 | 2.84 | 23.7 | |
| 16 | 26/0.254 | 1.50 | 3.20 | 14.9 | |
| 14 | 41/0.254 | 1.87 | 3.60 | 9.33 | |
| 12 | 65/0.254 | 2.36 | 4.07 | 5.88 | |
| 10 | 105/0.254 | 3.01 | 4.80 | 3.41 | |
| 8 | 160/0.254 | 3.71 | 6.20 | 2.08 | |
| 6 | 259/0.254 | 4.72 | 8.00 | 1.3 | |
