| UL Style & CSA Type |
額 定 Range |
導體 Conductor |
芯線數 Core |

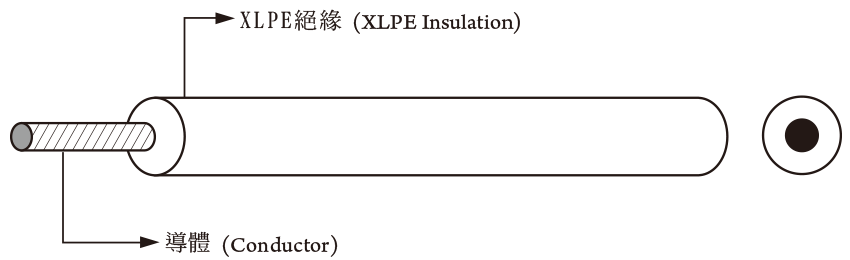

絕緣體 Insulation |
完成外徑 Overall Diameter mm |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
|||||
| UL3346 | 80°C | 150V | 30 | 7/0.10 | 1 | 0.25 | 0.9 | 354 | 1500 |
| 80°C | 150V | 28 | 7/0.127 | 1 | 0.25 | 1.0 | 223 | ||
| 80°C | 150V | 26 | 7/0.16 | 1 | 0.25 | 1.1 | 140 | ||
| 80°C | 150V | 24 | 11/0.16 | 1 | 0.25 | 1.2 | 87.6 | ||
| 80°C | 150V | 22 | 17/0.16 | 1 | 0.25 | 1.4 | 55.4 | ||
| 80°C | 150V | 20 | 26/0.16 | 1 | 0.25 | 1.5 | 34.6 | ||
| 80°C | 150V | 18 | 41/0.16 | 1 | 0.25 | 1.8 | 21.8 | ||
| 80°C | 150V | 16 | 65/0.16 | 1 | 0.25 | 2.1 | 13.7 | ||
