American Cord Set & Power Supply Cords - UL/CSA SPT-Parallel Cord

❖Product Description：
‧Bare stranded copper conductor.
‧Color-coded PVC insulation.
‧Rated temperature：60°C~105°C
‧Rated voltage：300 Volts
‧Pass UL VW-1 & CSA FT2 vertical flame test.

❖Applications：
‧SPT-1 & SPT-2： For use in housedhold clocks, fans, radios and similar appliances.
‧SPT-2 for heavier construction than SPT-1
‧SPT-3： For heavy-duty use in damp location; especially suitable for refrigerators and room-size air conditioners.
‧UL 20288： For use in chain link of chain suspended lighting fixtures.

❖Construction：

UL Style & CSA Type	Conductor		Core No.	Insulation Thickness	Jack Thickness	Overall Diameter
UL Style & CSA Type	AWG	No./ mm	Core No.	mm	mm	mm
SPT-1	18	41 / 0.160	2	0.76	-------	2.7 x 5.3
SPT-1	18	41 / 0.160	3	0.76	-------	2.7 x 7.8
N.I.SPT-1	18	41 / 0.160	2	0.38	0.38	2.8 x 5.3
N.I.SPT-1	18	41 / 0.160	3	0.38	0.38	2.8 x 7.8
SPT-2	18	41 / 0.160	2	1.14	-------	3.5 x 6.8
	16	65 / 0.160	1			3.7 x 7.4
	18	41 / 0.160	3			3.6 x 8.5
	16	65 / 0.160	3			3.9 x 9.0
N.I.SPT-2	18	41 / 0.160	2	0.76	0.38	3.5 x 6.8
	16	65 / 0.160	2			3.8 x 7.5
	18	41 / 0.160	3			3.5 x 10.1
	16	65 / 0.160	3			3.8 x 11.0
SPT-3	18	41 / 0.160	2	1.52		4.4 x 8.7
	16	65 / 0.160	2	1.52		4.5 x 9.1
	14	41 / 0.254	2	2.03		6.0 x 10.8
	12	65 / 0.254	2	2.41		7.4 x 14
	10	104 / 0.254	2	2.79		9.1 x 18.2
	18	41 / 0.160	3	1.52		7.3 x 9.8
	16	65 / 0.160	3	1.52		4.65 x 11.0
	14	41 / 0.254	3	2.03		6.0 x 14.5
	12	65 / 0.254	3	2.41		7.0 x 15.4
	10	104 / 0.254	3	2.79		9.1 x 18.8

American Cord Set & Power Supply Cords - HPN

❖RUBBER INSULATED FLEXIBLE CABLE


Structural plan	Three-dimensional structure

❖Product Description：
‧Rate Voltage：300V
‧Rated temperature：90°C/105°C
‧Passed UL VW-1 / FTI / CSA FT2 flame test
‧Bare standed copper conductor
‧Insulation with CSM / CPE or CR

❖ General date for cable type HPN (UL 62 & csa 22.2 No.49)

UL Style & CSA Type	Conductor		Insulation	Green Grouding Cond		Max. Conductor Resistance (Ohm/km/20°C)	Overall Diam
UL Style & CSA Type	AWG	Construction No./ mm	Nom. Thick (mm)	Nom. Thick (mm)	Nin. Thick (mm)	Max. Conductor Resistance (Ohm/km/20°C)	2C	3C	4C
HPN	16 x 2C	65 / 0.16	1.14	-	-	13.7	3.9 ± 0.15 ± 7.8 ± 0.2
	18 x 2C	41 / 0.16	1.14	-	-	21.8	3.6 ± 0.15 ± 7.2 ± 0.2
	16 x 3C	65 / 0.16	1.14	0.38	0.33	13.7	3.9 ± 0.15 ± 10 ± 0.2
	18 x 3C	41 / 0.16	1.14	0.38	0.33	21.8	3.6 ± 0.15 ± 9.0 ± 0.2

Type No.	Standard	Available with cords	AMP / V	Approvals
IH-101B	UL-817 CSA： C22.2 NO.42	SPT-1 18AWGx2C	10A 125v
		SPT-2 18AWGx2C	10A 125v
		SPT-2 16AWGx2C	13A 125v
		(NI)SPT-1 18AWGx2C	10A 125v
		(NI)SPT-2 18AWGx2C	10A 125v
		(NI)SPT-2 16AWGx2C	13A 125v
		HPN 18AWGx2C	10A 125v
		HPN 16AWGx2C	13A 125v

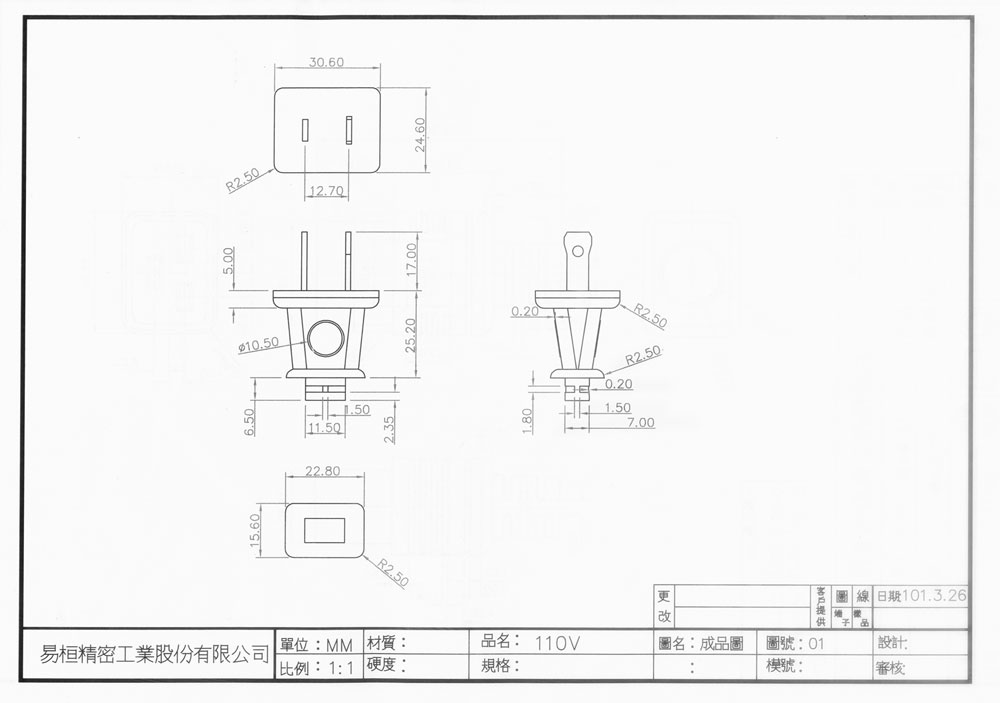

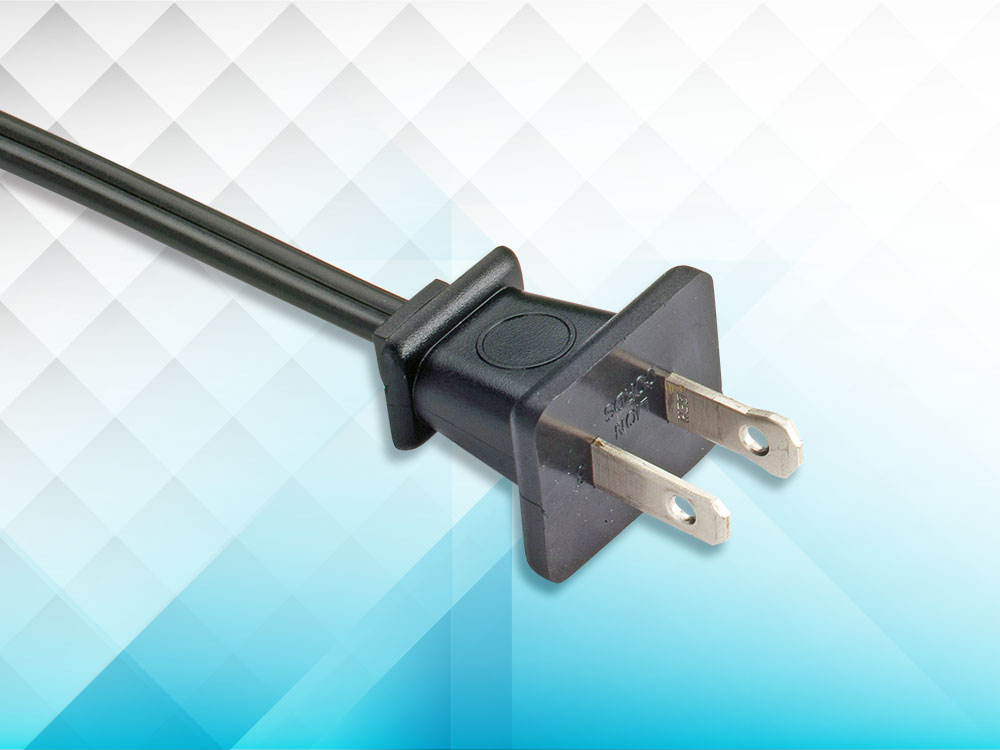

NEMA 1-15P IH-101B / Precision power supply cords
