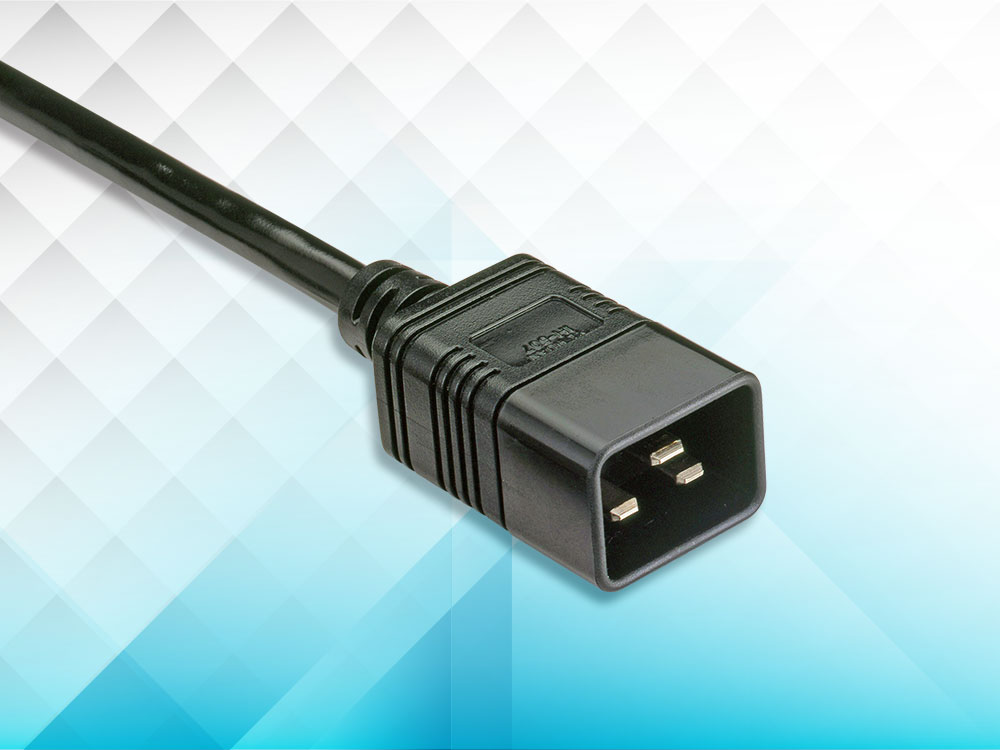

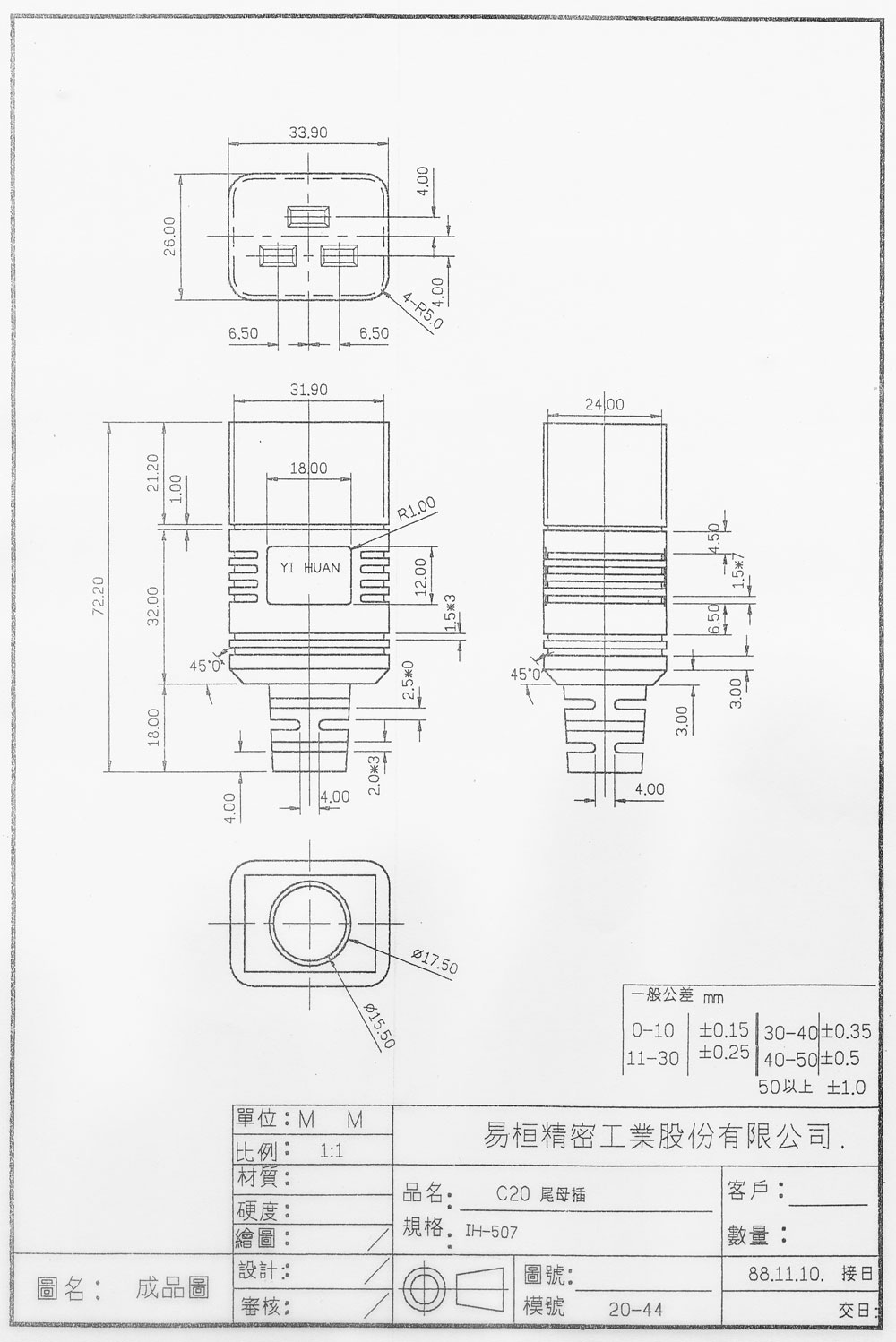

C20　IH-507 / Precision power supply cords

American Cord Set & Power Supply Cords - UL/CSA SPT-Parallel Cord

❖Product Description：
‧Bare stranded copper conductor.
‧Color-coded PVC insulation.
‧Rated temperature：60°C~105°C
‧Rated voltage：300 Volts
‧Pass UL VW-1 & CSA FT2 vertical flame test.

❖Applications：
‧SPT-1 & SPT-2： For use in housedhold clocks, fans, radios and similar appliances.
‧SPT-2 for heavier construction than SPT-1
‧SPT-3： For heavy-duty use in damp location; especially suitable for refrigerators and room-size air conditioners.
‧UL 20288： For use in chain link of chain suspended lighting fixtures.

❖Construction：
​

UL Style & CSA Type	Conductor		Core No.	Insulation Thickness	Jack Thickness	Overall Diameter
	AWG	No./ mm		mm	mm	mm
SPT-1	18	41 / 0.160	2	0.76	-------	2.7 x 5.3
	18	41 / 0.160	3			2.7 x 7.8
N.I.SPT-1	18	41 / 0.160	2	0.38	0.38	2.8 x 5.3
	18	41 / 0.160	3			2.8 x 7.8
SPT-2	18	41 / 0.160	2	1.14	-------	3.5 x 6.8
	16	65 / 0.160	1			3.7 x 7.4
	18	41 / 0.160	3			3.6 x 8.5
	16	65 / 0.160	3			3.9 x 9.0
N.I.SPT-2	18	41 / 0.160	2	0.76	0.38	3.5 x 6.8
	16	65 / 0.160	2			3.8 x 7.5
	18	41 / 0.160	3			3.5 x 10.1
	16	65 / 0.160	3			3.8 x 11.0
SPT-3	18	41 / 0.160	2	1.52		4.4 x 8.7
	16	65 / 0.160	2	1.52		4.5 x 9.1
	14	41 / 0.254	2	2.03		6.0 x 10.8
	12	65 / 0.254	2	2.41		7.4 x 14
	10	104 / 0.254	2	2.79		9.1 x 18.2
	18	41 / 0.160	3	1.52		7.3 x 9.8
	16	65 / 0.160	3	1.52		4.65 x 11.0
	14	41 / 0.254	3	2.03		6.0 x 14.5
	12	65 / 0.254	3	2.41		7.0 x 15.4
	10	104 / 0.254	3	2.79		9.1 x 18.8

​
American Cord Set & Power Supply Cords - UL/CSA SVT-Jacketed Cord ​
​
❖Product Description：

❈Unshielded ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Core twisted together with fillers. ‧Separator over core. ‧PVC jacketed. ‧Rated temperature：60°C,75°C,105°C ‧Rated voltage：300 Volts ‧Passes UL VW-1 & CSA FT2 vertical flame test.

❈Shielded ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Core twisted together with fillers. ‧Aluminium mylara. ‧Bare copper braid shield. 85°C, coberage. ‧PVC jacketed. ‧Rated temperature：60°C,75°C,105°C ‧Rated voltage：300 Volts ‧Pass UL VW-1 & CSA FT2 vertical flame test.

❖Applications：
‧Unshielded：for light-duty portable tools.mixers and vacuum cleaners.
‧Shielded：for power supply cord of computers to eliminate EMI and RFI.

❖Construction：

UL Style & CSA Type	Conductor		Insulation Thickness	Jack Thickness	Overall Diameter
	AWG	No./ mm	mm	mm	mm
SVT (unshielded)	18 x 2c	41 / 0.160	0.38	0.76	5.9 ± 0.10
	18 x 3c	41 / 0.160			6.3 ± 0.10
SVT (shielded)	18 x 3c	41 / 0.160	0.38	1.76	7.2 ± 0.15

American Cord Set & Power Supply Cords - UL/CSA SJT, ST-Jacketed Cord

❖Product Description：
‧Bare stranded copper conductor.
‧Color-coded PVC insulation.
‧Core twisted together with fillers.
‧Separator over core.
‧PVC jacketed water-resistant type.
‧Rated temperature：60°C,75°C,105°C
‧Rated voltage：SJT：300 Volts, ST：600 Volts
‧Passed UL VW-1 & CSA FT2 vertical flame test.
‧Outdoor-use cord type SJTW, STW are also available.
‧Oil Resistance cord type SJTO, SJTOO are also available.
‧Outdoor-use Oil Resistance cord type SJTOW, SJTOOW are also available.

❖Applications：
‧Suitable for portable hand tools. washing machines. polishers.sanders. vibrators. lights. therapeutic machines.
dish washers. medical equipment. and office machines.

❖Construction：
​

UL Style & CSA Type	Conductor		Insulation Thickness	Insulation Thickness	Overall Diameter
	AWG	No./ mm	mm	mm	mm
SJT.SJTO SJTOO.SJTW SJTOW.SJTOOW	18 x 2C	16 / 0.254	0.76	0.76	7.4 ± 0.15
	16 x 2C	26 / 0.254			7.8 ± 0.15
	14 x 2C	41 / 0.254			8.6 ± 0.15
	12 x 2C	65 / 0.254		1.14	10.2 ± 0.15
	10 x 2C	105 / 0.254	1.14	1.52	14.7 ± 0.15
	18 x 3C	16 / 0.254	0.76	0.76	7.8 ± 0.15
	16 x 3C	26 / 0.254			8.4 ± 0.15
	14 x 3C	41 / 0.254			9.2± 0.15
	12 x 3C	65 / 0.254		1.14	10.8 ± 0.15
	10 x 3C	105 / 0.254	1.14	1.52	15.6 ± 0.20
ST STW	18 x 2C	16 / 0.254	0.76	1.52	8.5 ± 0.15
	16 x 2C	26 / 0.254			9.3 ± 0.15
	14 x 2C	41 / 0.254	1.14	2.03	12.5± 0.15
	12 x 2C	65 / 0.254		2.41	14.2 ± 0.15
	10 x 2C	105 / 0.254			16.5 ± 0.15
	18 x 3C	16 / 0.254	0.76	1.52	8.9± 0.15
	16 x 3C	26 / 0.254			9.8± 0.15
	14 x 3C	41 / 0.254	1.14	2.03	13.1 ± 0.15
	12 x 3C	65 / 0.254		2.41	14.9 ± 0.15
	10 x 3C	105 / 0.254			17.4 ± 0.20

​
American Cord Set & Power Supply Cords - HPN SJ SJO SJOW ​
​
❖RUBBER INSULATED FLEXIBLE CABLE

Structural plan	Three-dimensional structure

​
❖Product Description：
‧Rate Voltage：300V
‧Rated temperature：90°C/105°C
‧Passed UL VW-1 / FTI / CSA FT2 flame test
‧Bare standed copper conductor
‧Insulation with CSM / CPE or CR


Structural plan	Three-dimensional structure

❖Product Description：
‧Operating temperature：60°C 70°C 90°C 105°C
‧Rate Voltage：300V
‧Test Voltage：2000V
‧Bare standed copper conductor
‧Rubber Insulation
‧CPE or CR jacket

❖Applications：
‧Suitable for indoor electrical.

❖ General date for cable type HPN (UL 62 & csa 22.2 No.49)

UL Style & CSA Type	Conductor		Insulation	Green Grouding Cond		Max. Conductor Resistance (Ohm/km/20°C)	Overall Diam
	AWG	Construction No./ mm	Nom. Thick (mm)	Nom. Thick (mm)	Nin. Thick (mm)		2C	3C	4C
HPN	16 x 2C	65 / 0.16	1.14	-	-	13.7	3.9 ± 0.15 ± 7.8 ± 0.2
	18 x 2C	41 / 0.16	1.14	-	-	21.8	3.6 ± 0.15 ± 7.2 ± 0.2
	16 x 3C	65 / 0.16	1.14	0.38	0.33	13.7	3.9 ± 0.15 ± 10 ± 0.2
	18 x 3C	41 / 0.16	1.14	0.38	0.33	21.8	3.6 ± 0.15 ± 9.0 ± 0.2
SJ SJO SJOW	18	41 / 0.16	0.76	0.69	0.76	0.61	7.11-8.0	7.62-8.51	8.26-9.27
	17	53 / 0.16	0.76	0.69	0.76	0.61	7.37-8.26	7.87-8.76	8.64-9.65
	16	26 / 0.26	0.76	0.69	0.76	0.61	7.75-8.64	8.26-9.14	8.89-10.03
	14	41 / 0.26	0.76	0.69	0.76	0.61	8.51-9.52	9.14-10.03	9.91-11.05
	12	65 / 0.26	0.76	0.69	1.14	0.91	10.29-11.56	10.8-12.06	11.81-13.21
	10	104 / 0.26	1.14	1.02	1.52	1.22	13.72-15.37	14.35-16.13	15.88-17.78
