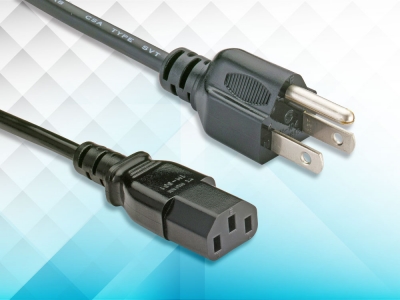

IH-207+501 / Precision power supply cords

Type No.	Standard	Available with cords	AMP / V	Approvals
IH-207 + IH-501	BSMI	VCTF 0.75mm² x 3C	7A 125V~	​
		VCTF 1.25mm² x 3C	12A 125V~
		VCTF 2.0mm² x 3C	15A 125V~
		VCT 0.75mm² x 3C	7A 125V~
		VCT 1.25mm² x 3C	12A 125V~
		VCT 2.0mm² x 3C	15A 125V~

Japanese Cord Set & Power Supply Cords-JIS C 3306-Flexible Cord

❖Product Description：

❈Type VFF ‧Bare stranded copper conductor. ‧PVC insulation flat twin cord. ‧Rated Voltage：300 Volts ‧Rated Temperature： VFF,VCTF,VCTFK:60°C HVFF,HVCTF,HVCTFK:75°C

❈Type VCTF ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, round type. ‧Rated Voltage：300 Volts ‧Rated Temperature： VFF,VCTF,VCTFK:60°C HVFF,HVCTF,HVCTFK:75°C

❈Type VCTFK ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧PVC jacketed cord, flat type. ‧Rated Voltage：300 Volts ‧Rated Temperature： VFF,VCTF,VCTFK:60°C HVFF,HVCTF,HVCTFK:75°C

❖Applications：
‧Suitable for indoor small electrical instruments.

❖Construction：
▼ Type VFF/HVFF
​



▼ Type VCTF/HVFF



▼ Type VCTFK/HVCTFK

Type No.	Conductor		Insulation Thickness	Jacket Thickness	Overall Diameter	Max. Cond. Resistance
	Size	線數/線徑
	mm²	No./ mm	mm	mm	mm	Ohm/km
VFF HVFF	0.75 x 2C	20 / 0.18	0.8	-	2.5 x 5.0	36.7
	1.25 x 2C	30 / 0.18		-	2.7 x 5.4	24.4
	2.00 x 2C	50 / 0.18		-	3.1 x 6.2	14.7
	2.00 x 2C	37 / 0.26		-	3.4 x 6.8	9.5
VCTF HVCTF	0.75 x 2C	30 / 0.18	0.6	1.0	6.6 ± 0.15	25.1
	1.25 x 2C	50 / 0.18			7.4 ± 0.20	15.1
	2.00 x 2C	37 / 0.26			8.0 ± 0.20	9.79
	0.75 x 3C	30 / 0.18			7.0 ± 0.20	25.1
	1.25 x 3C	50 / 0.18			7.8 ± 0.20	15.1
	2.00 x 3C	37 / 0.26			8.5 ± 0.20	9.79
	0.75 x 4C	30 / 0.18			7.6 ± 0.20	25.1
	1.25 x 4C	50 / 0.18			8.5 ± 0.20	15.1
	2.00 x 4C	37 / 0.26			9.3 ± 0.25	9.79
VCTFK HVCTFK	0.75 x 2C	30 / 0.18	0.6	1.0	4.3 x 6.6	24.4
	1.25 x 2C	50 / 0.18			4.7 x 7.4	14.7
	2.00 x 2C	37 / 0.26			5.0 x 8.0	9.5

​
Japanese Cord Set & Power Supply Cords-JIS C3312-Portable Power Cord ​

❖Product Description：

❈Type VCT ‧Tinned or bare, stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, round type. ‧Rated Voltage：VCT 60°C ‧Rated Temperature：HVCT 75°C

❈Type HVCT ‧Tinned or bare, stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, round type. ‧Rated Voltage：VCT 60°C ‧Rated Temperature：HVCT 75°C

​
❖Applications：
‧Suitable for portable hand tools. washing machines. polishers. sanders. vi-brators. lights. therapeutic machines.
dish washers. medical equipment. and office machines.

❖Construction：
▼ Type VCT/HVCT



Type No.	Conductor		Insulation Thickness	Jacket Thickness	Overall Diameter	Max. Cond. Resistance		Min Insu. Resistance
	Size	線數/線徑
	mm²	No./ mm	mm	mm	mm	Bare Copper	Tinned Copper	Ohm/km
VCT HVCT	0.75 x 2C	30 / 0.18	0.8	1.7	8.8	25.1	26.6	50
	1.25 x 2C	50 / 0.18		1.7	9.6	15.1	16.0	50
	2.00 x 2C	37 / 0.26		1.8	10.5	9.79	10.2	50
	0.75 x 3C	30 / 0.18		1.7	9.2	25.1	26.6	50
	1.25 x 3C	50 / 0.18		1.7	10.5	15.1	16.0	50
	2.00 x 3C	37 / 0.26		1.8	11.0	9.79	10.2	50
	0.75 x 4C	30 / 0.18		1.7	9.9	25.1	26.6	50
	1.25 x 4C	50 / 0.18		1.8	11.5	15.1	16.0	50
	2.00 x 4C	37 / 0.26		1.8	12.0	9.79	10.2	50

Japanese Cord Set & Power Supply Cords-HHFF For Flexible Cord

❖Product Description：
‧Rate Voltage：300V
‧Passed-F flame test
‧Bare or tinned stranded copper conductor
‧Insulated with CPE or CR

❖Applications：
‧Suitable for indoor electrical Instrument Power Supply Cable.

❖Construction：

Type No.	Conductor		Insulation	Diam. (mm)	Max. Conductor Resistance (Ohm/km/20°C)
	Area (mm²)	Construction ( No./ mm)	Nom. Thick. (mm)		uncoating	coating
NNFF HHFF	0.75	67/0.12 30/0.18	1.0	8.8	25.1	26.6
	1.25	112/0.12 50/0.18	1.0	9.6	15.1	16.0
	2.0	37/0.26	1.0	10.5	9.79	10.2

Japanese Cord Set & Power Supply Cords-PNCT 600V Rubber Insulated Flexibe Cable

❖Product Description：
‧Test Voltage：600 V
‧Rate Voltage：3000 V
‧Tinned stranded copper conductor
‧EPR insulation
‧CR jacket

❖Applications：
‧General data for cable type 2 PNCT (JCS C3327-1982)

❖Construction：
▼ Type 2PNCT
​

Type No.	Conductor		Insulation	Jacket		Max. Conductor Resistance (Ohm/km/20°C)
	Area(mm²)	Construstion (No./ mm)	Nom.Thick.(mm)	Nom.Thick. (mm)	Diam.(mm)	coating
2 PNCT	0.75mm² x 2C	30 / 0.18	0.8	1.65	9.0 ± 0.2	26.6
	0.75mm² x 3C	30 / 0.18	0.8	1.7	9.4 (約)	26.6
	1.25mm² x 2C	50 / 0.18	0.8	1.7	9.8 (約)	16
	1.25mm² x 3C	50 / 0.18	0.8	1.8	10.59 ± 0.2	16
	1.25mm² x 4C	50 / 0.18	0.8	1.8	11.29 (約)	16
	2mm² x 3C	37 / 0.26	0.8	1.8	11.2 (約)	10.2
	2mm² x 4C	37 / 0.26	0.8	1.85	12.2 (約)	10.2
	3.5mm² x 4C	45 / 0.32	0.8	1.9	14 (約)	5.54
