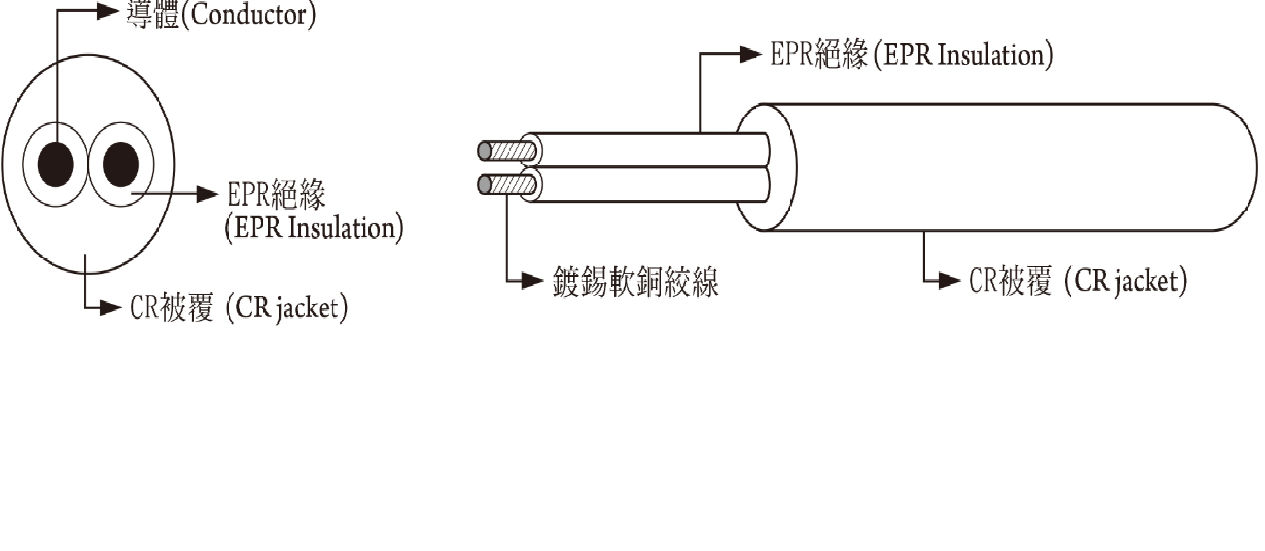

| Type No. | Conductor | Insulation | Jacket | Max. Conductor Resistance (Ohm/km/20°C) |
||
| Area(mm²) | Construstion (No./ mm) |
Nom.Thick.(mm) | Nom.Thick. (mm) | Diam.(mm) | coating | |
| 2 PNCT | 0.75mm² x 2C | 30 / 0.18 | 0.8 | 1.65 | 9.0 ± 0.2 | 26.6 |
| 0.75mm² x 3C | 30 / 0.18 | 0.8 | 1.7 | 9.4 (約) | 26.6 | |
| 1.25mm² x 2C | 50 / 0.18 | 0.8 | 1.7 | 9.8 (約) | 16 | |
| 1.25mm² x 3C | 50 / 0.18 | 0.8 | 1.8 | 10.59 ± 0.2 | 16 | |
| 1.25mm² x 4C | 50 / 0.18 | 0.8 | 1.8 | 11.29 (約) | 16 | |
| 2mm² x 3C | 37 / 0.26 | 0.8 | 1.8 | 11.2 (約) | 10.2 | |
| 2mm² x 4C | 37 / 0.26 | 0.8 | 1.85 | 12.2 (約) | 10.2 | |
| 3.5mm² x 4C | 45 / 0.32 | 0.8 | 1.9 | 14 (約) | 5.54 | |
