American Cord Set & Power Supply Cords - UL/CSA SVT-Jacketed Cord ​
​
❖Product Description：

❈Unshielded ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Core twisted together with fillers. ‧Separator over core. ‧PVC jacketed. ‧Rated temperature：60°C,75°C,105°C ‧Rated voltage：300 Volts ‧Passes UL VW-1 & CSA FT2 vertical flame test.

❈Shielded ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Core twisted together with fillers. ‧Aluminium mylara. ‧Bare copper braid shield. 85°C, coberage. ‧PVC jacketed. ‧Rated temperature：60°C,75°C,105°C ‧Rated voltage：300 Volts ‧Pass UL VW-1 & CSA FT2 vertical flame test.

❖Applications：
‧Unshielded：for light-duty portable tools.mixers and vacuum cleaners.
‧Shielded：for power supply cord of computers to eliminate EMI and RFI.

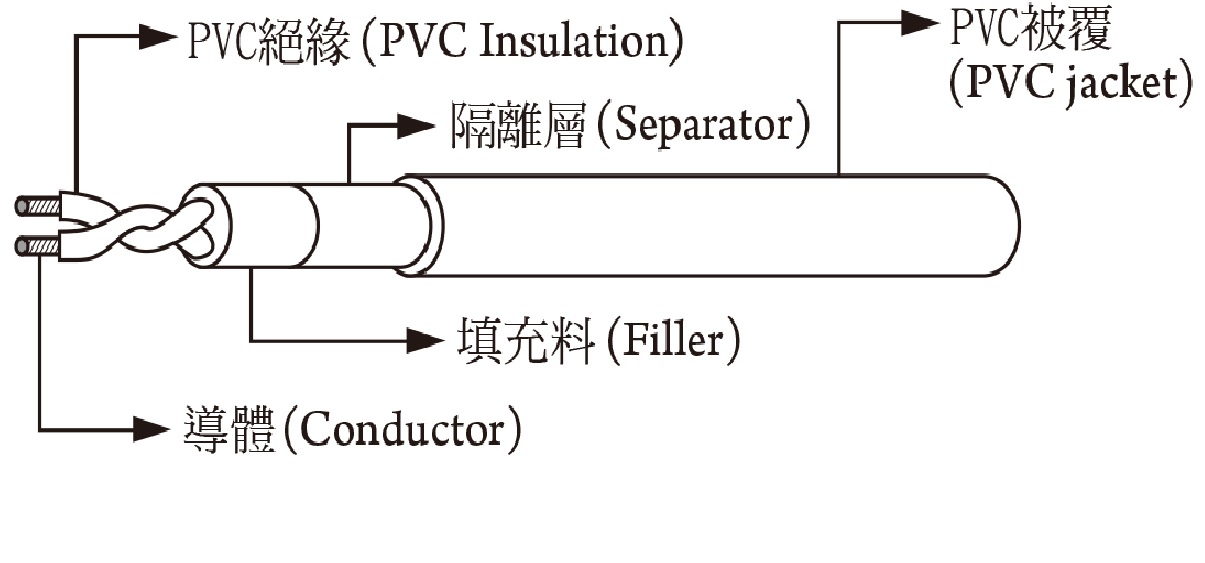

❖Construction：

UL Style & CSA Type	Conductor		Insulation Thickness	Jack Thickness	Overall Diameter
	AWG	No./ mm	mm	mm	mm
SVT (unshielded)	18 x 2c	41 / 0.160	0.38	0.76	5.9 ± 0.10
	18 x 3c	41 / 0.160			6.3 ± 0.10
SVT (shielded)	18 x 3c	41 / 0.160	0.38	1.76	7.2 ± 0.15
