❖Product Description
Conductor 32 AWG minimum, solid or stranded.
PVC Insulation and Jacket.
Rated temperature: 80°C.
Rated voltage: 300Volts.
Pass UL VW-1 & CSA FT1 vertical flame test.

❖Applications
Internal wiring of electronic equipment and appliances. Tags may indicate the following: "600 volts Peak for Electronic use only".

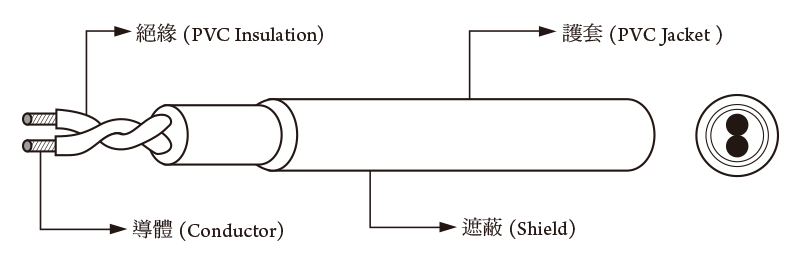

❖Structure & electrical properties
PVC Wire 2095

UL Style & CSA Type	Range		Conductor		Pair No	Insulation	Jacket	Overall Diameter mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
	Temp ℃	Voltage V	AWG	NO./mm		Thickness mm	Jacket Thickness
UL 2095	80℃	300V	30	7/0.10	2	0.38	0.38	3.70	354	2000
					3			4.35
	80℃	300V	28	7/0.127	2	0.38	0.38	3.90	223
					3			4.55
	80℃	300V	26	7/0.16	2	0.38	0.38	4.15	140
					3			4.85
	80℃	300V	24	11/0.16	2	0.38	0.38	4.45	87.6
					3			5.20
	80℃	300V	22	17/0.16	2	0.38	0.38	4.80	55.4
	80℃	300V	20	26/0.16	2			5.20	34.6
	80℃	300V	18	41/0.16	2	0.38	0.38	5.75	21.8
	80℃	300V	16	65/0.16	2			6.45	13.7
