2464 / Precision power supply cords

Home › Products › Hook up wire & cable › PVC wire & cable › 2464

Description Wire material

❖Product Description
Conductor: The tinned or bare standarded copper.
PVC Insulation and Jacket.
Rating temperature: 80°C.
Rating voltage: 300Volts.
Pass UL VW-1 & CSA FT1 vertical flame test.

❖Applications
Internal wiring or external interconnection of electronic equipment.

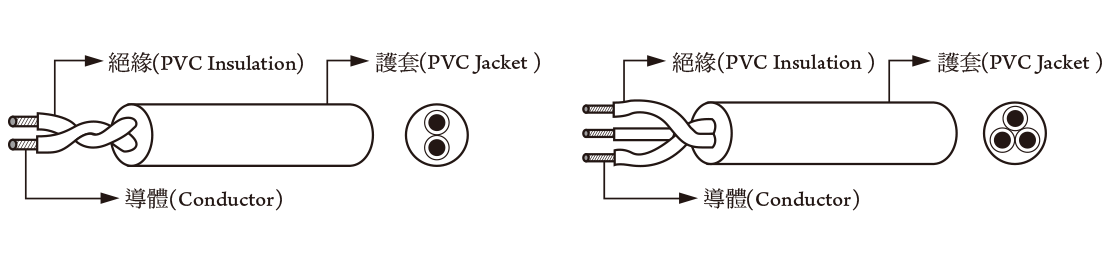

❖Structure & electrical properties
PVC Wire 2464

UL Style & CSA Type	Range		Conductor		Core	Insulation	Jacket	Overall Diameter mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
	Temp ℃	Voltage V	AWG	NO./mm		Thickness mm	Jacket Thickness
Style 2464	80℃	300V	26	7/0.16	3	0.38	0.76	4.60	140	2000
					4			4.95
					5			5.35
	80℃	300V	24	11/0.16	3	0.38	0.76	4.95	87.6
					4			5.30
					5			5.75
	80℃	300V	22	17/0.16	3	0.38	0.76	5.25	55.4
					4			5.70
					5			6.15
	80℃	300V	20	21/0.16	3	0.38	0.76	5.70	34.6
					4			6.15
					5			6.70
	80℃	300V	18	34/0.16	3	0.38	0.76	6.25	21.8
					4			6.75
					5			7.35
