❖Product Description
Conductor 40 AWG-16AWG solid or stranded round, tinned or bare copper.
PVC Insulation and PETP film bonded with PVC.
Rated temperature: 80°C.
Rated voltage: 300Volts.
Pass UL FT2 Horizontal flame test.

❖Applications
Internal wiring of Electronic Equipment.

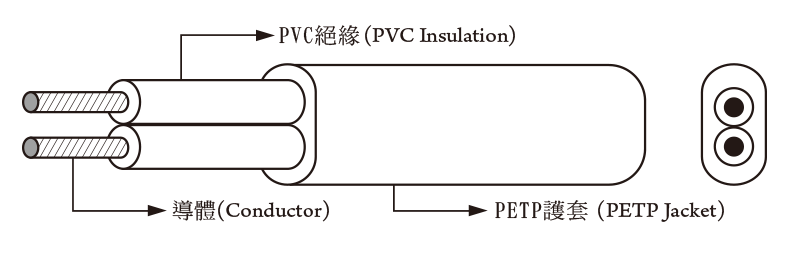

❖Structure & electrical properties
PVC Wire 2810

UL Style & CSA Type	Range		Conductor		Core	Insulation	Jacket	Overall Diameter mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
UL Style & CSA Type	Temp ℃	Voltage V	AWG	NO./mm	Core	Thickness mm	Jacket Thickness	Overall Diameter mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
2810	80℃	300V	24	11/0.16	2	0.38	0.2	1.65X3.10	87.6	2000
	80℃	300V	22	17/0.16	2	0.38	0.2	1.85X3.50	55.4
	80℃	300V	20	26/0.16	2	0.38	0.2	2.00X3.80	34.6
	80℃	300V	18	41/0.16	2	0.38	0.2	2.25X4.30	21.8
	80℃	300V	16	65/0.16	2	0.38	0.2	2.55X4.90	13.7
	80℃	300V	14	65/0.251	2	0.38	0.2	2.95X5.70	8.62

2810 / Precision power supply cords
