❖Product Description
Solid or stranded, tinned copper conductor, 30-10AWG.
Rating temperature: 150°C.
Rating voltage: 600Volts.
Non-PVC Insulation (XL-PE), Passed UL VW-1 vertical flame test.
Halogen free XL-PE insulation, Horizontal flame Test.

❖Applications
Suitable for fixed internal wires of household Appliance, headlamp, mechanical etc.

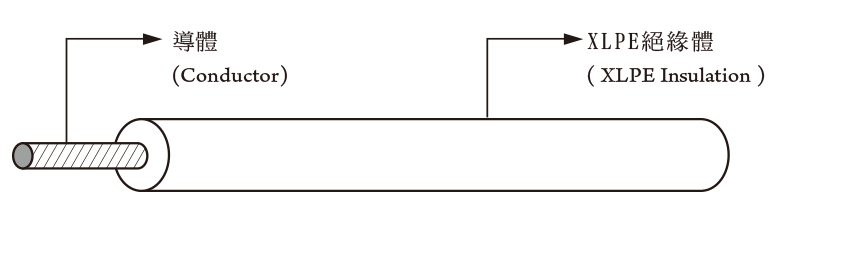

❖Structure & electrical properties
XLPE Wire 3289

UL3289	Range		Conductor		Insulation		Tolerance mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
UL3289	Temp ℃	Voltage V	AWG	NO./mm	Thickness mm	O.D mm	Tolerance mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
Stranded	150°C	600V	30	7/0.100	0.76	1.85	± 0.10	397	2000
			28	7/0.127	0.76	1.9	± 0.10	248
			26	7/0.160	0.76	2.1	± 0.10	152
			24	11/0.160	0.76	2.2	± 0.10	88.6
			22	17/0.160	0.76	2.4	± 0.10	62.5
			20	21/0.180	0.76	2.6	± 0.10	39.5
			18	34/0.180	0.76	2.8	± 0.10	24.4
			16	26/0.254	0.76	3.1	± 0.15	15.6
			14	41/0.254	0.76	3.5	± 0.20	9.90
			12	65/0.254	0.76	4.1	± 0.20	6.24
			10	105/0.254	0.76	4.8	± 0.25	4.15
Solid (TA)	150°C	600V	30	1/0.254	0.76	1.8	± 0.10	377
			28	1/0.320	0.76	1.85	± 0.10	232
			26	1/0.040	0.76	1.95	± 0.10	155
			24	1/0.500	0.76	2.15	± 0.10	92.4
			22	1/0.643	0.76	2.3	± 0.10	60.1
			20	1/0.813	0.76	2.45	± 0.10	37.0
