3619 / Precision power supply cords

Home › Products › Hook up wire & cable › XLPE wire & cable › 3619

Description Wire material

❖Product Description
Conductor 36 AWG - 20 AWG solid or stranded round, silver plated, tinned or bare copper.
XLPE Insulation.
Rated temperature: 80 / 105°C.
Voltage: 150Volts.
Passed UL FT2 Horizontal flame test.

❖Applications
Internal wiring of appliances.

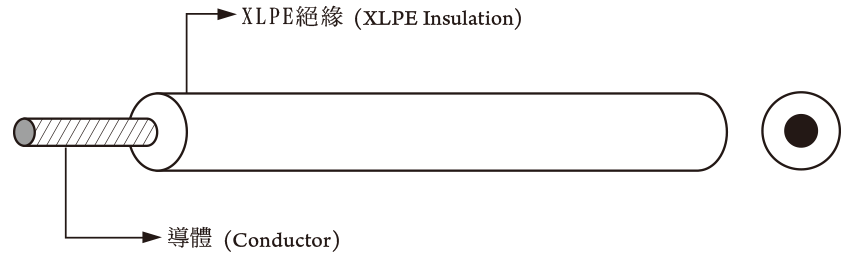

❖Structure & electrical properties

XLPE Wire 3619

UL Style & CSA Type	Range		Conductor		Core	Insulation	Overall Diameter mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
UL Style & CSA Type	Temp ℃	Voltage V	AWG	NO./mm	Core	Thickness mm	Overall Diameter mm	Maximum Conductor Resistance Ω/km	(VAC/min) Insulation Potential Strength
UL3619	80/105°C	150V	30	7/0.10	1	0.127	0.6	354	2000
	80/105°C	150V	28	7/0.127	1	0.127	0.7	223
	80/105°C	150V	26	7/0.16	1	0.127	0.8	140
	80/105°C	150V	24	11/0.16	1	0.127	0.9	87.6
	80/105°C	150V	22	17/0.16	1	0.127	1.1	55.4
	80/105°C	150V	20	26/0.16	1	0.127	1.2	34.6
