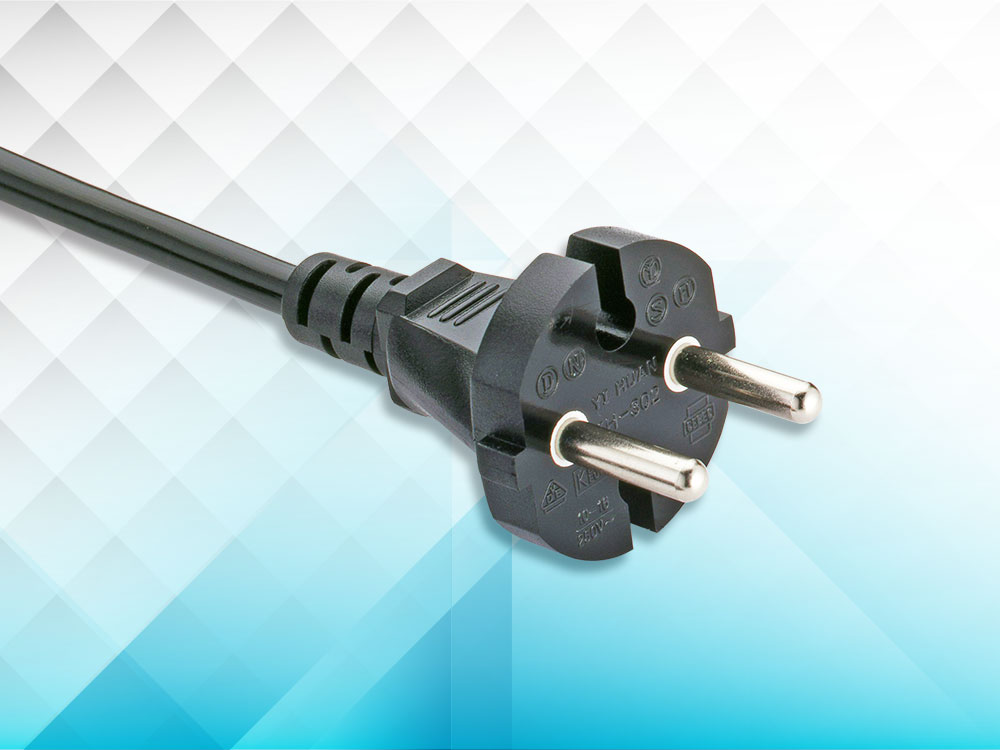

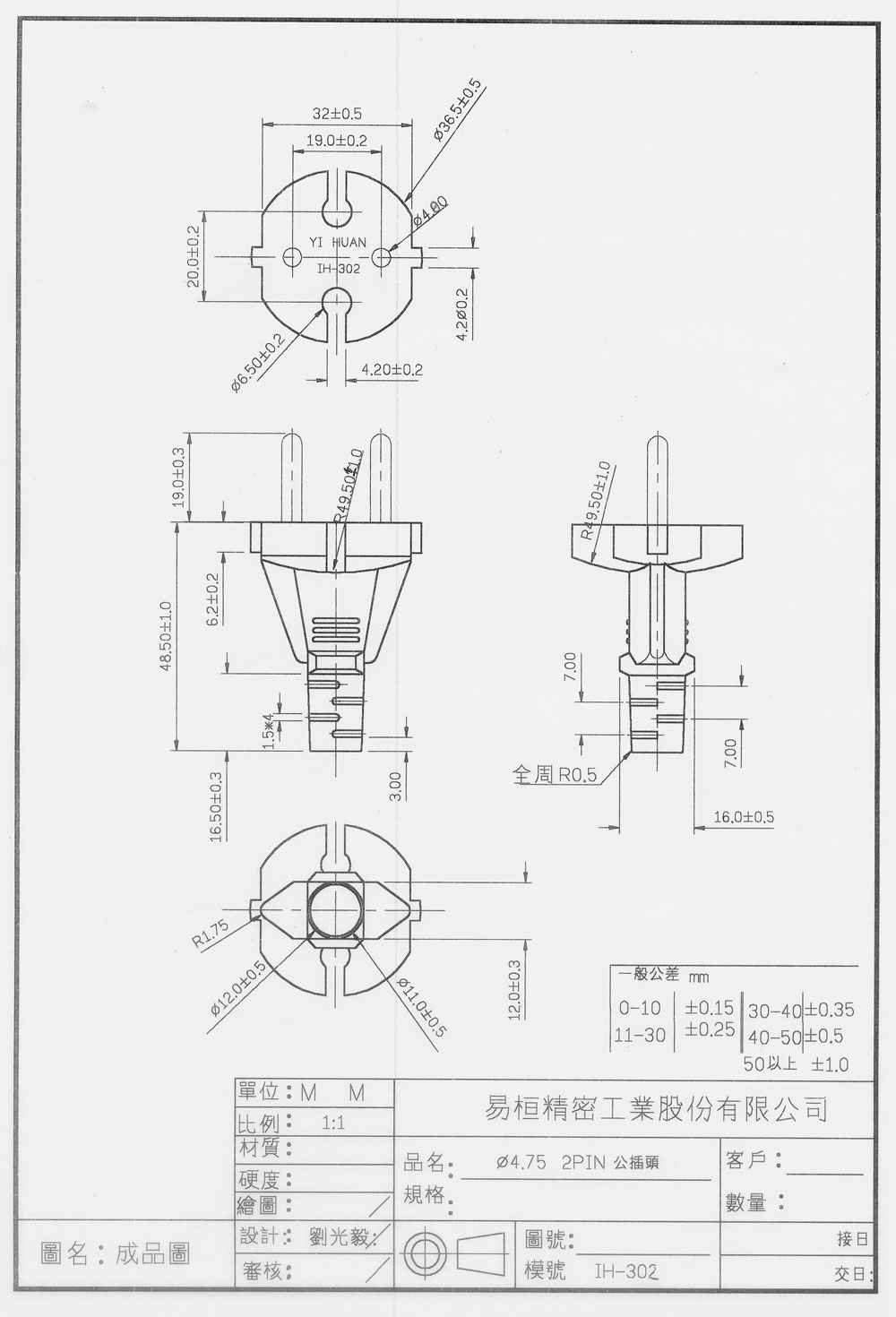

CEE7-XVII　IH-302 / Precision power supply cords

European Cord Set & Power Supply Cords-VDE 0281 Flexible Cord VDE

❖Product Description：

❈H03VVH2-F ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧PVC jacketed cord, flat type. ‧Rated voltage：300 V/300V ‧Rated temperature：70°C

❈H03VV-F ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, flat type. ‧Rated voltage： 300 V/300V ‧Rated temperature：70°C

❈H05VVH2-F ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧PVC jacketed cord, flat type. ‧Rated voltage： 300 V/350V ‧Rate temperature：70°C

❈H05VV-F ‧Bare stranded copper conductor. ‧Color-coded PVC insulation. ‧Cores twisted together. ‧PVC jacketed cord, flat type. ‧Rated voltage：300 V/300V ‧Rated temperature：70°C

❖Applications：
‧Suitable for indoor small electrical instruments.

❖Construction：
▼ HO3VVH2-F & H05VVH2-F
​



▼ HO3VV-F & H05VV-F





Type No.	Conductor		Insuiation Thickness	Jacket Thickness	Overall Diameter
	Size	線數/線徑
	mm²	No./ mm	mm	mm	mm
H03VVF2-F	0.75 x 2C	24/0.20 or 30/0.18	0.5	0.6	3.45 x 5.6
H03VV-F	0.75 x 2C	24/0.20 or 30/0.18			5.5
	0.75 x 3C	24/0.20 or 30/0.18			6.3
H05VVH2-F	0.75 x 2C	24/0.20 or 30/0.18	0.6	0.8	4.0 x 6.4
H05VV-F	0.75 x 2C	24/0.20 or 30/0.18			6.4
	1.0 x 2C	32 / 0.20			6.7
	1.5 x 2C	30 / 0.25	0.7	0.8	7.6
	0.75 x 3C	24/0.20 or 30/0.18	0.6	0.8	6.8
	1.0 x 3C	32 / 0.20			7.1
	1.5 x 3C	30 / 0.25	0.7	0.9	8.3

​
​
European Cord Set & Power Supply Cords-VDE H05RN-F H05RR-F For Flexible Cord VDE

❖Product Description：

❈H05RN-F線種 ‧Operating temperature：-15°C~60°C ‧Rate Voltage：300 /500V ‧Test Voltage：2000V ‧Bare or tinned stranded copper conductor ‧EPR insulation ‧Vulcanized rubber jacket type EPR

❈H05RR-F線種 ‧Operating temperature：-15°C~60°C ‧Rate Voltage：300 /500V ‧Test Voltage：2000V ‧Bare (Tin) stranded copper conductor ‧EPR insulation ‧CR jacket

​
❖Applications：
‧For high electric equipment.

❖Construction：




Type No.	Conductor			Insuiation Thickness	Jacket		Max. Conductor Resistance (Ohm/km/20°C)
	Size ( mm²)	Construction ( No./ mm)	Diam.of single(mm)Max (mm)
				Nom. Thick. (mm)	Nom. Thick. (mm)	Diam.(mm)	uncoating	coating
H05RR-F	2 x 0.75	24 / 0.2	0.21	0.6	0.8	6.64 ± 0.2	26.0	26.7
	2 x 1.0	32 / 0.2	0.21	0.6	0.9	7.1 ± 0.2	19.5	20.0
	3G0.75	24 / 0.2	0.21	0.6	0.9	7.04 ± 0.2	26.0	26.7
	3G1.0	32 / 0.2	0.21	0.6	0.9	7.4 ± 0.2	19.5	20.0
	2 x 1.5	30 / 0.025	0.26	0.8	1.0	8.6 ± 0.2	13.3	13.7
	3G1.5	30 / 0.025	0.26	0.8	1.0	8.89 ± 0.2	13.3	13.7
H05RN-F	2 x 0.75	24 / 0.2	0.21	0.6	0.8	6.64 ± 0.2	26.0	26.7
	2 x 1.0	32 / 0.2	0.21	0.6	0.9	7.1 ± 0.2	19.5	20.0
	3G0.75	24 / 0.2	0.21	0.6	0.9	7.04 ± 0.2	26.0	26.7
	3G1.0	32 / 0.2	0.21	0.6	0.9	7.4 ± 0.2	19.5	20.0
	2 x 1.5	30 / 0.025	0.26	0.8	1.0	8.6 ± 0.2	13.3	13.7
	3 x 1.5	30 / 0.025	0.26	0.8	1.0	8.89 ± 0.2	13.3	13.7
