| UL Style & CSA Type |
額 定 Range |
導體 Conductor |
芯線數 Core |
絕緣體 Insulation |
外被 Jacket |
完成外經 Overall Diameter |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
厚度 Jacket Thickness |
|||||

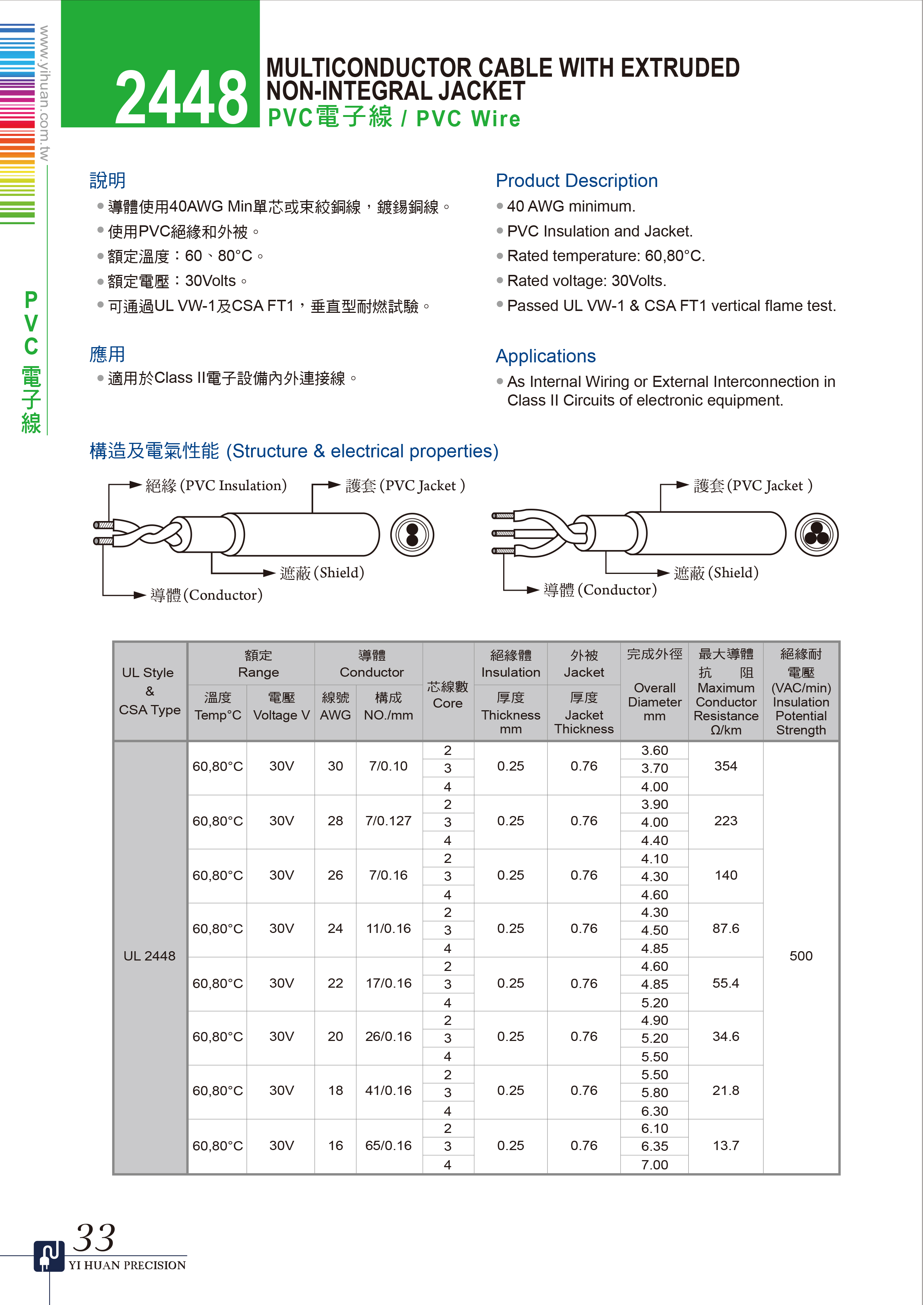

| UL2448 | 60, 80℃ |
30V | 30 | 7/0.10 | 2 | 0.25 | 0.76 | 3.60 | 354 | 500 |
| 3 | 3.70 | |||||||||
| 4 | 4.00 | |||||||||
| 60, 80℃ |
30V | 28 | 7/0.127 | 2 | 0.25 | 0.76 | 3.90 | 223 | ||
| 3 | 4.00 | |||||||||
| 4 | 4.40 | |||||||||
| 60, 80℃ |
30V | 26 | 7/0.16 | 2 | 0.25 | 0.76 | 4.10 | 140 | ||
| 3 | 4.30 | |||||||||
| 4 | 4.60 | |||||||||
| 60, 80℃ |
30V | 24 | 11/0.16 | 2 | 0.25 | 0.76 | 4.30 | 87.6 | ||
| 3 | 4.50 | |||||||||
| 4 | 4.85 | |||||||||
| 60, 80℃ |
30V | 22 | 17/0.16 | 2 | 0.25 | 0.76 | 4.60 | 55.4 | ||
| 3 | 4.85 | |||||||||
| 4 | 5.20 | |||||||||
| 60, 80℃ |
30V | 20 | 26/0.16 | 2 | 0.25 | 0.76 | 4.90 | 34.6 | ||
| 3 | 5.20 | |||||||||
| 4 | 5.50 | |||||||||
| 60, 80℃ |
30V | 18 | 41/0.16 | 2 | 0.25 | 0.76 | 5.50 | 21.8 | ||
| 3 | 5.80 | |||||||||
| 4 | 6.30 | |||||||||
| 60, 80℃ |
30V | 16 | 65/0.16 | 2 | 0.25 | 0.76 | 6.10 | 13.7 | ||
| 3 | 6.35 | |||||||||
| 4 | 7.00 | |||||||||
