| UL Style & CSA Type |
額 定 Range |
導體 Conductor |
芯線數 Core |
絕緣體 Insulation |
外被 Jacket |
完成外徑 Overall Diameter mm |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
厚度 Jacket Thickness |
|||||

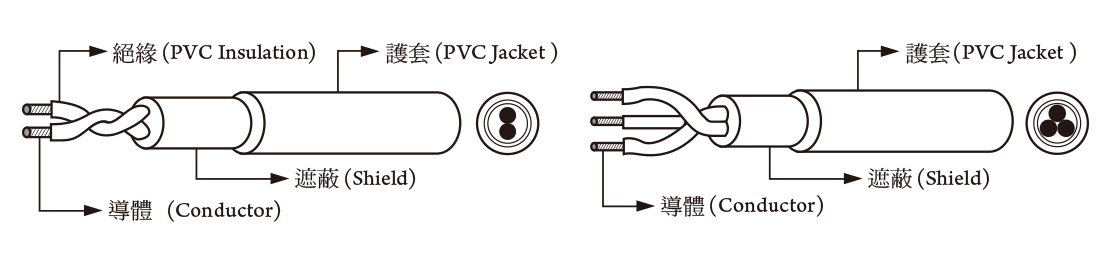

| UL2490 | 60℃ | not specified |
30 | 7/0.10 | 2 | 0.38 | 1.52 | 5.50 | 354 | 2000 |
| 3 | 5.70 | |||||||||
| 4 | 6.00 | |||||||||
| 60℃ | not specified |
28 | 7/0.127 | 2 | 0.38 | 1.52 | 5.70 | 223 | ||
| 3 | 5.90 | |||||||||
| 4 | 6.20 | |||||||||
| 60℃ | not specified |
26 | 7/0.16 | 2 | 0.38 | 1.52 | 5.95 | 140 | ||
| 3 | 6.15 | |||||||||
| 4 | 6.45 | |||||||||
| 60℃ | not specified |
24 | 11/0.16 | 2 | 0.38 | 1.52 | 6.15 | 87.6 | ||
| 3 | 6.35 | |||||||||
| 4 | 6.75 | |||||||||
| 60℃ | not specified |
22 | 17/0.16 | 2 | 0.38 | 1.52 | 6.55 | 55.4 | ||
| 3 | 6.70 | |||||||||
| 4 | 7.20 | |||||||||
| 60℃ | not specified |
20 | 26/0.16 | 2 | 0.38 | 1.52 | 6.80 | 34.6 | ||
| 3 | 7.10 | |||||||||
| 4 | 7.55 | |||||||||
| 60℃ | not specified |
18 | 41/0.16 | 2 | 0.38 | 1.52 | 7.30 | 21.8 | ||
| 3 | 7.70 | |||||||||
| 4 | 8.20 | |||||||||
| 60℃ | not specified |
16 | 65/0.16 | 2 | 0.38 | 1.52 | 7.90 | 13.7 | ||
| 3 | 8.25 | |||||||||
| 4 | 8.90 | |||||||||
