| UL Style & CSA Type |
額 定 Range |
導體 Conductor |
芯線數 Core |
絕緣體 Insulation |
外被 Jacket |
完成外徑 Overall Diameter mm |
最大導體阻抗 Maximum Conductor Resistance Ω/km |
絕緣耐電壓 (VAC/min) Insulation Potential Strength |
||
| 溫度 Temp ℃ |
電 壓 Voltage V |
線號 AWG |
構成 NO./mm |
厚度 Thickness mm |
厚度 Jacket Thickness |
|||||

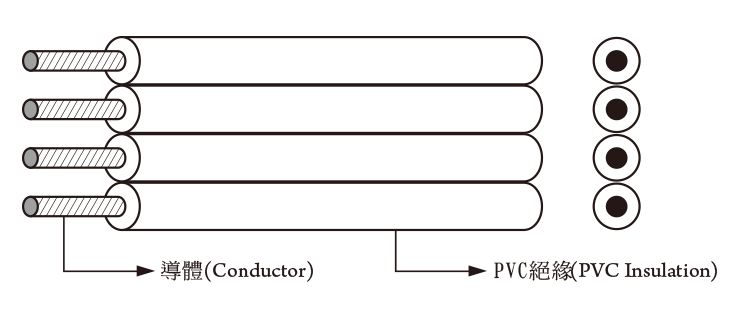

| UL2569 | 105℃ | 600V | 30 | 7/0.10 | 2 | 0.76 | -- | 2.00*3.80 | 354 | 2000 |
| 3 | 2.00*5.70 | |||||||||
| 105℃ | 600V | 28 | 7/0.127 | 2 | 0.76 | -- | 2.10*4.00 | 223 | ||
| 3 | 2.10*5.90 | |||||||||
| 105℃ | 600V | 26 | 7/0.16 | 2 | 0.76 | -- | 2.20*4.20 | 140 | ||
| 3 | 2.20*6.20 | |||||||||
| 105℃ | 600V | 24 | 11/0.16 | 2 | 0.76 | -- | 2.30*4.45 | 87.6 | ||
| 3 | 2.30*6.60 | |||||||||
| 105℃ | 600V | 22 | 17/0.16 | 2 | 0.76 | -- | 2.45*4.75 | 55.4 | ||
| 20 | 26/0.16 | 2 | 2.65*5.10 | 34.6 | ||||||
| 105℃ | 600V | 18 | 41/0.16 | 2 | 0.76 | -- | 2.85*5.60 | 21.8 | ||
| 16 | 65/0.16 | 2 | 3.20*6.20 | 13.7 | ||||||
